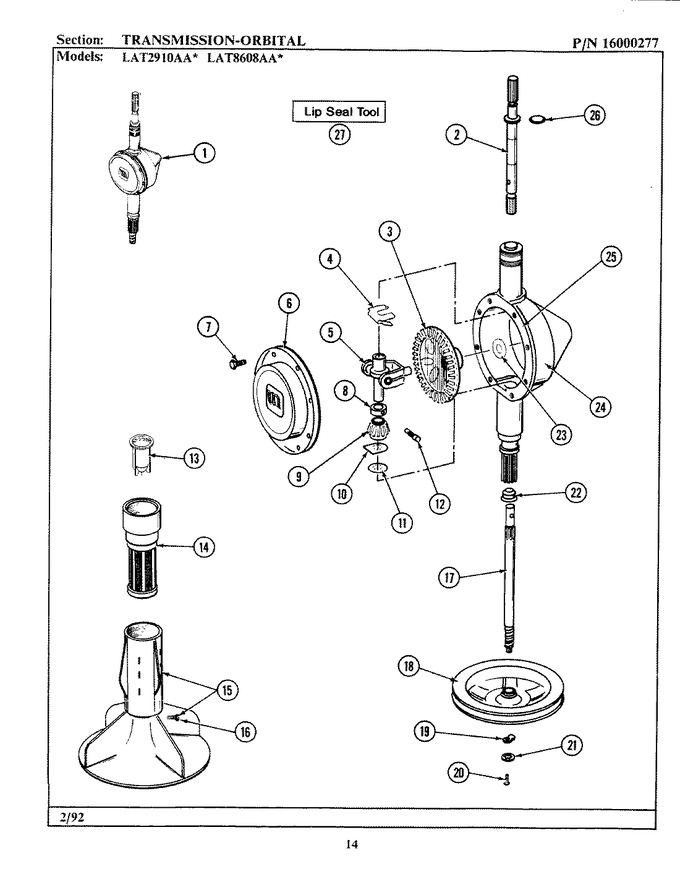

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	206708		Transmission		Appelez-nous	-
2	207153		Shaft, Agitator (w/spring)		Appelez-nous	-
3	206713		Gear, Bevel		Appelez-nous	-
4	WP215581		Spring, Agitator Shaft   (Replaces: 215581)				$ 7.47
5	206685		Block, Torque And Yoke Assembl		Appelez-nous	-
6	206628		Cover, Transmission		Appelez-nous	-
7	215417		Screw, Transmission Cover		Appelez-nous	-
8	215415		Collar, Lower		Appelez-nous	-
9	WPW10221114		Pinion   (Replaces: 215401)				$ 58.63
10	WP215395		Plate, Clutch   (Replaces: 215395)			Immediately	$ 6.79
11	WP6-2114830		Washer, Splined   (Replaces: 211483)				$ 7.05
12	WPY206629		Pin, Collar   (Replaces: Y206629)				$ 7.88
13	215733		Dispensing Cup		Appelez-nous	-
14	WPY207427		Lint Filter Shallow   (Replaces: Y207427)				$ 139.92
15	207538		Agitator W/lock Screw				$ 102.74
16	206478		Screw & Washer For Agitator		Appelez-nous	-
17	215411		Shaft, Center		Appelez-nous	-
18	WP6-2301530		Pulley, Drive   (Replaces: 211059)				$ 178.73
19	WP211089		Lug, Stop   (Replaces: 211089)				$ 10.16
20	WP912618		Screw,stop Lug(center Shaft)   (Replaces: 211375)				$ 6.98
21	WP22003555		Washer, Lock   (Replaces: 211090)				$ 19.26
22	206602		Seal, Lip (center Shaft)		Appelez-nous	-
23	215394		Washer, Bevel Gear		Appelez-nous	-
24	206625		Housing, Transmission		Appelez-nous	-
25	W10841140		Silastic,adh.sealant   (Replaces: Y058700)			Immediately	$ 24.92
26	210690		Seal, Rubber				$ 13.19
27	038228		Lip Seal Tool		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
