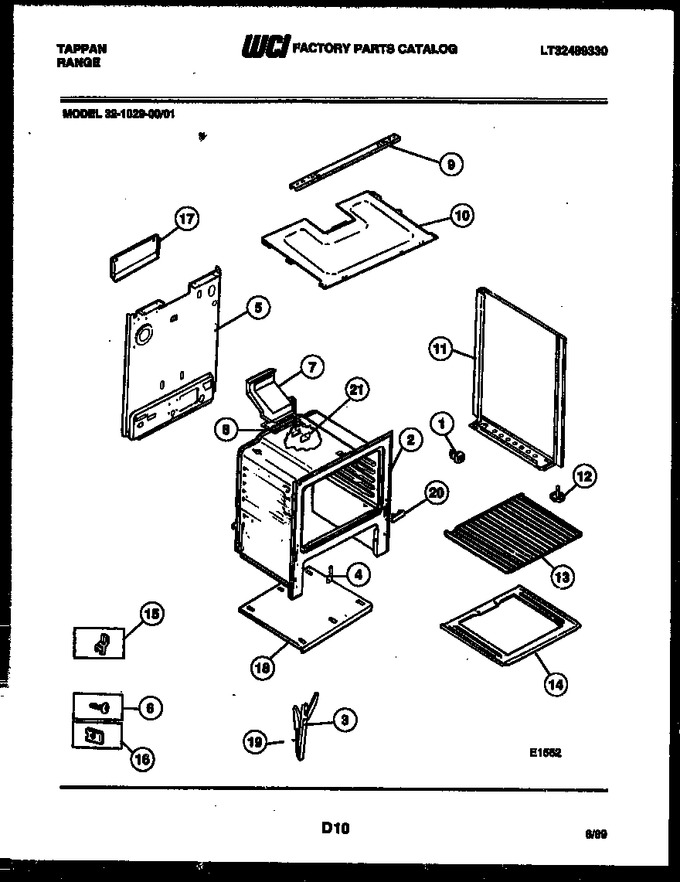

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Broiler Drawer Parts
05 - Door Parts
06 - Body Parts
07 - Burner, Manifold And Gas Control
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014099 | Spacer, B/s (8) |
|
$ 3.62 | |||||
| 3 | 3131569 | Channel-door Hinge |
|
- | |||||
| 4 | 3131570 | Cover Hinge Cutout |
|
$ 7.35 | |||||
| 5 | 3203082 | Back-main |
|
- | |||||
| 6 | 316282700 | Screw, Oven Bottom (Replaces: 3131732) |
|
$ 9.93 | |||||
| 7 | 3131909 | Flue |
|
- | |||||
| 8 | 3131355 | Flue-gasket |
|
- | |||||
| 9 | 3203394 | Channel-burner Sprt |
|
- | |||||
| 10 | 3204962 | Burner Box |
|
- | |||||
| 11 | 3200790 | Pnl-b/s Rh (almd) |
|
- | |||||
| 12 | 3203397 | Screw-leveling (4) |
|
- | |||||
| 13 | 3131973 | Rack, Oven (2) |
|
- | |||||
| 14 | 3011519 | Bottom-oven |
|
- | |||||
| 15 | 3011805 | Clip - Thermo Bulb |
|
- | |||||
| 16 | 3012323 | Fstnr - U Type |
|
- | |||||
| 17 | 3131191 | Cover, Flue |
|
- | |||||
| 18 | 3131180 | Base, Broil |
|
- | |||||
| 19 | 3131575 | Chnl Dr Spring (2) |
|
- | |||||
| 20 | 3015372 | Cover - Dront Main |
|
- | |||||
| 21 | 3018607 | Cover Plate |
|
$ 10.50 | |||||
| 11A | 3200793 | Pnl-b/s Lh (almd) |
|
- | |||||
| 14A | 3017142 | Insulation (wrapper) (non-illustrated) |
|
$ 193.50 | |||||
| 14B | 3203541 | Insulation, Back (non-illustrated) |
|
- | |||||
| 17A | 3014226 | Support - Oven Bttm (non-illustrated) |
|
- | |||||
| 20A | 3934056 | Anti Tip, Brackets (non-illustrated) |
|
- | |||||
| 20B | 3202799 | Shield-flue, (non-illustrated) |
|
- |
