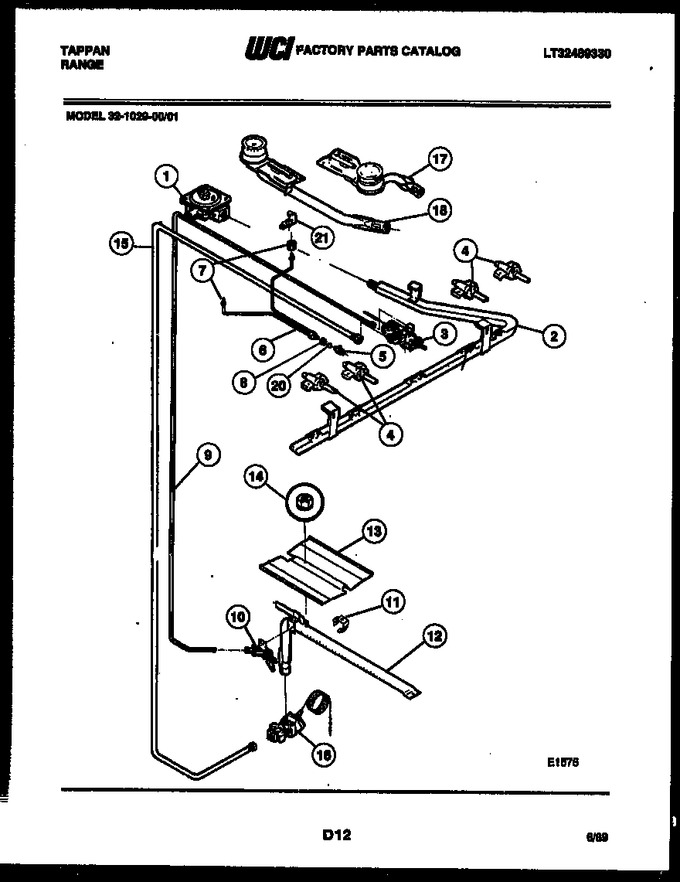

07 - Burner, Manifold And Gas Control
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016997 | Control Regul. |
|
- | |||||
| 2 | 3204972 | Manifold - Pipe |
|
- | |||||
| 3 | 3204974 | Thermostat |
|
- | |||||
| 4 | 3202796 | Valve, Top 2 Pos (4) |
|
- | |||||
| 5 | 3201274 | Filter |
|
- | |||||
| 6 | 3201273 | Tube-top Pilot Dual |
|
- | |||||
| 7 | 3201275 | Cap-top Pilot |
|
- | |||||
| 8 | 3201276 | Nut-compression |
|
- | |||||
| 9 | 3203398 | Tube Alum Therm/pilot W/ Fittings |
|
- | |||||
| 10 | 3203395 | Pilot - Oven |
|
- | |||||
| 11 | 3018603 | Brkt-oven Burner |
|
- | |||||
| 12 | 3203391 | Burner - Oven |
|
- | |||||
| 13 | 3203265 | Baffle,oven Burner |
|
- | |||||
| 14 | 3013272 | Nut - Baffle |
|
- | |||||
| 15 | 3202800 | Tube Alum Thermo/safety Valve W/ Fittings |
|
- | |||||
| 16 | 3204583 | Valve - Safety |
|
- | |||||
| 17 | 3204958 | Burner - Top Frnt (2) |
|
- | |||||
| 18 | 3204960 | Burner-top-rear |
|
- | |||||
| 19 | 3202798 | Shield-pilot (2) |
|
$ 55.18 | |||||
| 20 | 3201277 | Ferrule |
|
- | |||||
| 21 | 3202798 | Shield - Pilot |
|
$ 55.18 | |||||
| 4A | 3204499 | Screw - Valves (10) (non-illustrated) |
|
- |
