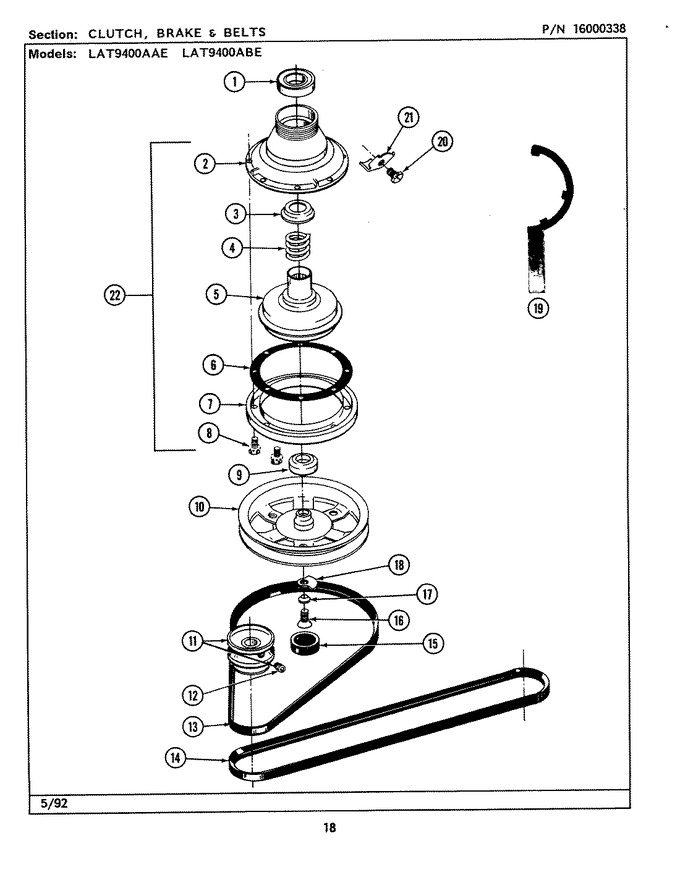

03 - Clutch, Brake & Belts (lat9400aae & Abe)


04 - Control Panel (lat9400aae, Lat9400abe)


05 - Motor & Pump Assembly (lat9400aae & Abe)


06 - Top (lat9400aae, Lat9400abe)


07 - Transmission-orbital(lat9400aae & Abe)


08 - Tub-inner & Outer (lat9400aae & 9400abe)


09 - Tub-water Inlet & Tub Cover


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y200720		Ball Bearing, Radial	A0	Appelez-nous	-
2	211045		Housing, Brake	A0	Appelez-nous	-
3	211039		Retainer, Brake Spring	A0	Appelez-nous	-
4	211041		Spring, Brake	A0	Appelez-nous	-
5	201126		Rotor, Brake (w/facing)	A0	Appelez-nous	-
6	211042		Gasket, Brake Drum	A0	Appelez-nous	-
7	211043		Drum, Brake	A0	Appelez-nous	-
8	WP8281227		Screw,hex Head (brake Drum)   (Replaces: 211000)	A0			$ 9.40
9	200835		Bearing, Brake Rotor	A0			$ 30.47
10	WP6-2301530		Pulley, Drive   (Replaces: 211059)	A0			$ 178.73
11	200816		Pulley, Motor (w/set Screw)	A0	Appelez-nous	-
12	Y053241		Set Screw, Pulley	A0	Appelez-nous	-
13	12112425		V Belt,drive Pulley   (Replaces: 211125)	A0		Immediately	$ 45.06
14	12112425		V Belt, Pump   (Replaces: 211124)	A0		Immediately	$ 45.06
15	211038		Cap, Oil Retainer	A0			$ 214.34
16	WP912618		Screw,stop Lug(center Shaft)   (Replaces: 211375)	A0			$ 6.98
17	WP22003555		Washer, Lock   (Replaces: 211090)	A0			$ 19.26
18	WP211089		Lug, Stop   (Replaces: 211089)	A0			$ 10.16
19	Y038315		Tool, Brake Pkg Assy	A0	Appelez-nous	-
20	213326		Screw, Retaining Clip	A0	Appelez-nous	-
21	213325		Clip, Retainer	A0			$ 5.51
22	201190		Brake Assembly	A0	Appelez-nous	-
