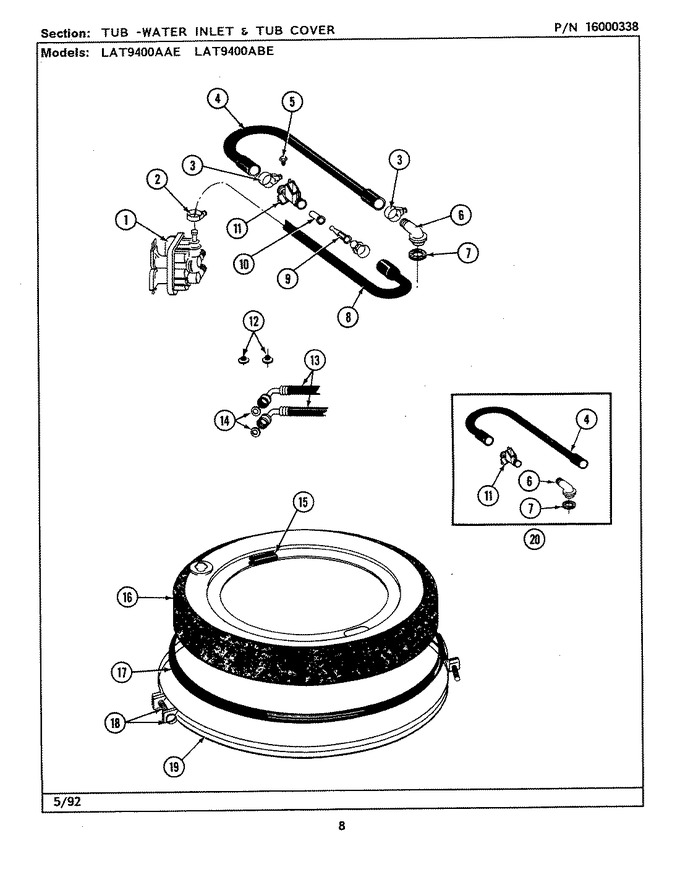

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 205613 | Water Valve | A0 |
|
Immediately | $ 103.57 | |||
| 2 | WP596669 | Hose Clamp (Replaces: 201575) | A0 |
|
Immediately | $ 7.56 | |||
| 3 | WP596669 | Hose Clamp - 1-1/16 Inch (Replaces: 202515) | A0 |
|
Immediately | $ 7.56 | |||
| 4 | WPY215234 | Injector Fill Hose (Replaces: Y215234) | A0 |
|
$ 83.54 | ||||
| 5 | 312620 | Sems Screw, No.10-16 X 1/2`` | A0 |
|
- | ||||
| 6 | 215235 | Injector Tube | A0 |
|
$ 16.14 | ||||
| 7 | 215233 | Seal For Injector Tube | A0 |
|
$ 5.84 | ||||
| 8 | WP213013 | Hose, Injector (Replaces: 213013) | A0 |
|
Immediately | $ 44.40 | |||
| 9 | WP213015 | Injector Nozzle (Replaces: 213015) | A0 |
|
Immediately | $ 7.29 | |||
| 10 | WP216201 | Valve For Injector Sub (Replaces: 213016) | A0 |
|
Immediately | $ 18.88 | |||
| 11 | WP215447 | Sleeve For Injector (Replaces: 215447) | A0 |
|
Immediately | $ 7.32 | |||
| 12 | 200961 | Screen Washer, Inlet Hose | A0 |
|
- | ||||
| 13 | WP89503 | Inlet Hose Assy. (Replaces: 202860) | A0 |
|
Immediately | $ 21.68 | |||
| 14 | Y013783 | Gasket, Inlet Hose | A0 |
|
$ 18.72 | ||||
| 15 | 215232 | Unbalance Bumper | A0 |
|
- | ||||
| 16 | 206380 | Tub Cover | A0 |
|
- | ||||
| 17 | WP211232 | Seal (Replaces: 211232) | A0 |
|
$ 62.96 | ||||
| 18 | 205529 | Nut & Bolt Kit For Tub Clam | A0 |
|
$ 6.58 | ||||
| 19 | 200846 | Clamp - Tub Cover | A0 |
|
$ 62.11 | ||||
| 20 | WP206680 | Injector Hose Kit (Replaces: 206683) | A0 |
|
Immediately | $ 76.98 |
