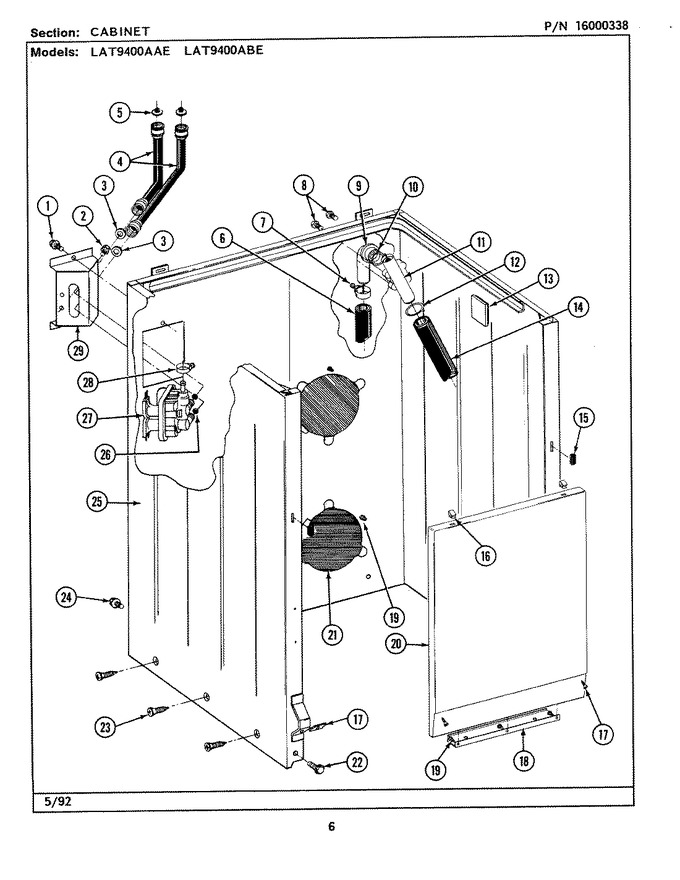

LAT9400ABE | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	WP90767	Screw (Replaces: 212276)	A0		Immediately	$ 7.04
2	Y313561	Screw----na	A0			$ 5.27
3	Y013783	Gasket, Inlet Hose	A0			$ 18.72
4	WP89503	Inlet Hose Assy. (Replaces: 202860)	A0		Immediately	$ 21.68
5	200961	Screen Washer, Inlet Hose	A0	Appelez-nous	-
6	216017	Hose, Drain (7/8``i.d.)	A0	Appelez-nous	-
6	Y059149	(7/8`` I.d. Carton Of 50 Ft.)	A0	Appelez-nous	-
7	WP285655	Hose Clamp - 1-1/2 Inch (Replaces: 200908)	A0		Immediately	$ 7.55
8	WPY014874	Screw (Replaces: Y014874)	A0			$ 6.98
9	WPW10116738	Elbow, Siphon Break (Replaces: Y216016)	A0		Immediately	$ 29.49
10	WP214765	Gasket, Siphon Break (Replaces: 214765)	A0			$ 73.22
11	206638	Siphon Break(w/clamp)	A0		Immediately	$ 73.56
12	WP3367052	Clamp, Hose (Replaces: 202574)	A0			$ 7.49
13	215058	Pad, Cabinet Bumper	A0	Appelez-nous	-
14	WP22001448	Hose,pump To Siphon Break (Replaces: 214767)	A0			$ 79.87
15	214376	Spacer, Front Panel	A0	Appelez-nous	-
16	WP22001650	Fastener, Panel (Replaces: 212982)	A0		Immediately	$ 7.34
17	204439	Screw & Fstner Assy(frt.panel)	A0			$ 8.80
18	213846	Guard, Belt	A0	Appelez-nous	-
19	WP90767	Screw (Replaces: 211294)	A0		Immediately	$ 7.04
20	212998	Front Panel-white	A0			$ 8.63
21	211878	Plate, Access	A0	Appelez-nous	-
22	WP27001200	Screw,cbnt.to Frnt Of Base--na (Replaces: 213122)	A0			$ 6.91
23	213007	Screw, Cabinet	A0			$ 10.99
24	WPW10346892	Screw (Replaces: 213121)	A0		Immediately	$ 6.47
25	203319	Cabinet-white	A0	Appelez-nous	-
26	WP96160	Screen, Valve (Replaces: 214337)	A0			$ 10.54
27	205613	Water Valve	A0		Immediately	$ 103.57
28	WP596669	Hose Clamp (Replaces: 201575)	A0		Immediately	$ 7.56
29	214812	Bracket,water Valve	A0	Appelez-nous	-
