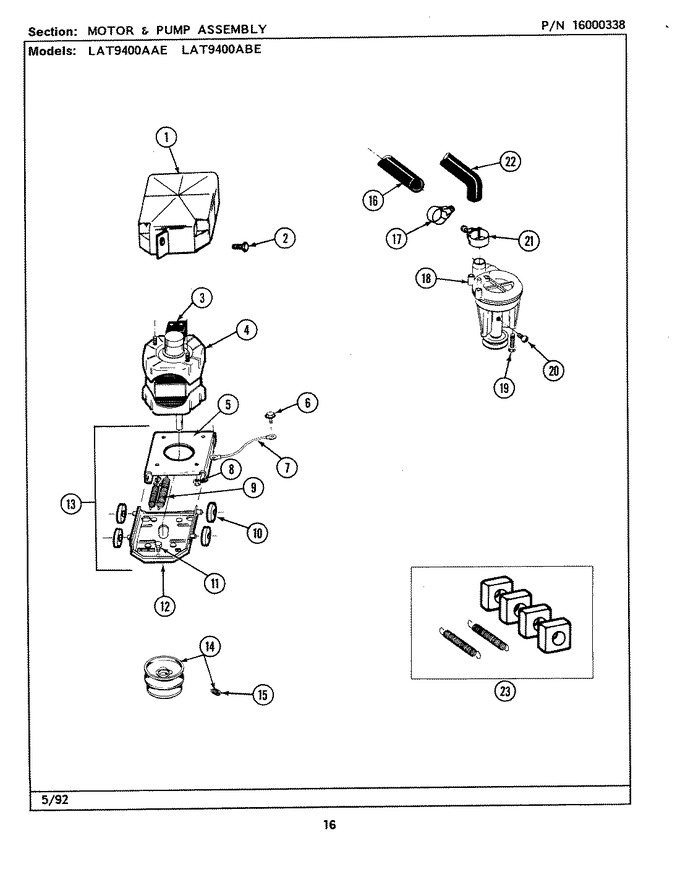

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215098 | Shield, Motor | A0 |
|
- | ||||
| 2 | WPW10346892 | Screw (Replaces: 213121) | A0 |
|
Immediately | $ 6.47 | |||
| 3 | 205133 | Motor External Start Switch | A0 |
|
- | ||||
| 3 | 205132 | Switch, Motor Start | A0 |
|
- | ||||
| 3 | 206505 | Switch, Motor Start | A0 |
|
- | ||||
| 4 | 12002351 | Motor (one Speed) (Replaces: 201805) | A0 |
|
Immediately | $ 170.98 | |||
| 5 | 214956 | Mount, Motor/upper | A0 |
|
- | ||||
| 6 | WP489128 | Screw, Ground Wire To Base--na (Replaces: 210186) | A0 |
|
$ 9.79 | ||||
| 7 | 901220 | Wire, Ground | A0 |
|
- | ||||
| 8 | WP3400029 | Nut, Washered Lock (Replaces: Y311426) | A0 |
|
Immediately | $ 6.98 | |||
| 9 | 202718 | Tension Springs | A0 |
|
Immediately | $ 200.35 | |||
| 10 | 205000 | Glide Kit (4 W/poly Lube) (Replaces: 204998) | A0 |
|
$ 62.00 | ||||
| 11 | Y313561 | Screw----na | A0 |
|
$ 5.27 | ||||
| 12 | 205908 | Lower Motor Mount | A0 |
|
- | ||||
| 13 | 205999 | Motor Mount Assm Complete | A0 |
|
$ 61.84 | ||||
| 14 | 200816 | Pulley, Motor (w/set Screw) | A0 |
|
- | ||||
| 15 | Y053241 | Set Screw, Pulley | A0 |
|
- | ||||
| 16 | WP22001448 | Hose,pump To Siphon Break (Replaces: 214767) | A0 |
|
$ 79.87 | ||||
| 17 | WP285655 | Hose Clamp - 1-5/8 Inch (Replaces: 200461) | A0 |
|
Immediately | $ 7.55 | |||
| 18 | 202203 | Pump As Pak | A0 |
|
- | ||||
| 19 | WPY014874 | Screw, Hex Hd No.10 X 1/2 Inc (Replaces: 211880) | A0 |
|
$ 6.98 | ||||
| 20 | WP3390631 | Screw, Bearing Insert (Replaces: Y015408) | A0 |
|
$ 7.04 | ||||
| 21 | WP3367052 | Clamp, Hose (Replaces: 202574) | A0 |
|
$ 7.49 | ||||
| 22 | WP213045 | Drain Hose-tub To Pump (Replaces: 213045) | A0 |
|
Immediately | $ 43.57 | |||
| 23 | 205000 | Glide & Spring Kit | A0 |
|
$ 62.00 |
