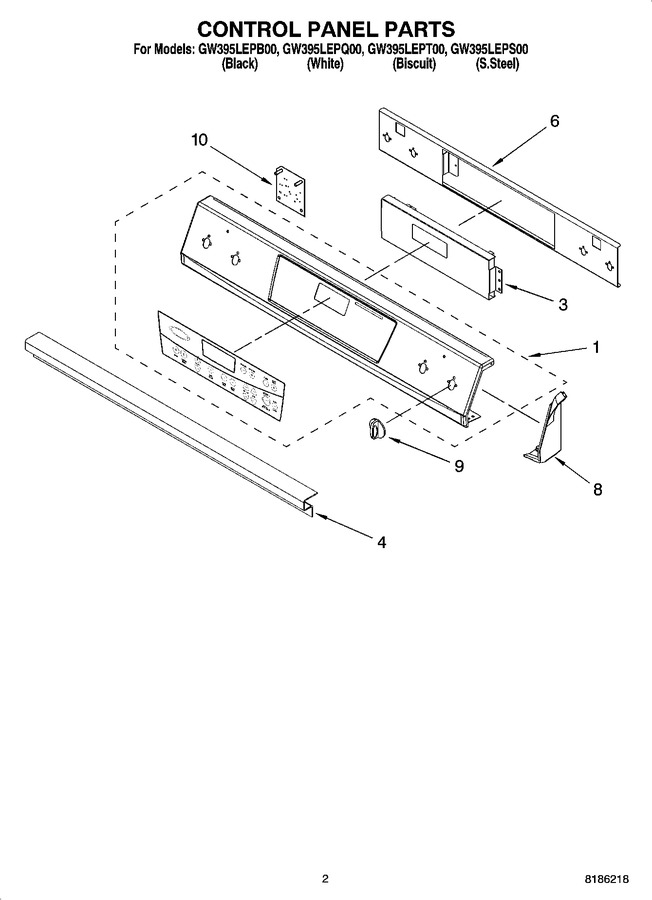

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8191143 | Control Panel (black) |
|
- | |||||
| 1 | 8191144 | Control Panel (s.steel) |
|
- | |||||
| 1 | 8191141 | Control Panel (white) |
|
- | |||||
| 1 | 8191142 | Control Panel (biscuit) |
|
- | |||||
| 3 | 9780271 | Screw |
|
- | |||||
| 3 | 9757264 | Control, Migration |
|
- | |||||
| 4 | 9757119 | Bracket, Console |
|
- | |||||
| 4 | 3179776 | Screw (3) |
|
- | |||||
| 6 | 3179776 | Screw |
|
- | |||||
| 6 | 9759731 | Bracket, Control |
|
- | |||||
| 8 | 9756614BT | Endcap (biscuit Lh) |
|
- | |||||
| 8 | 9756614WH | Endcap (white Lh) |
|
- | |||||
| 8 | 9756614BL | Endcap (black Lh) |
|
$ 25.68 | |||||
| 8 | 9756611BT | Endcap (biscuit Rh) |
|
- | |||||
| 8 | 9756611WH | Endcap (white Rh) |
|
- | |||||
| 8 | 9756611BL | Endcap (black Rh) |
|
$ 25.95 | |||||
| 8 | 3196172 | Endcap (screw) |
|
Immediately | $ 11.55 | ||||
| 9 | 9759732WH | Knob (white) |
|
- | |||||
| 9 | 9759732BT | Knob (biscuit) |
|
- | |||||
| 9 | 9759732BL | Knob (black) |
|
- | |||||
| 10 | WPW10331686 | Module, Spark (Replaces: 9758080) |
|
Immediately | $ 354.47 |
