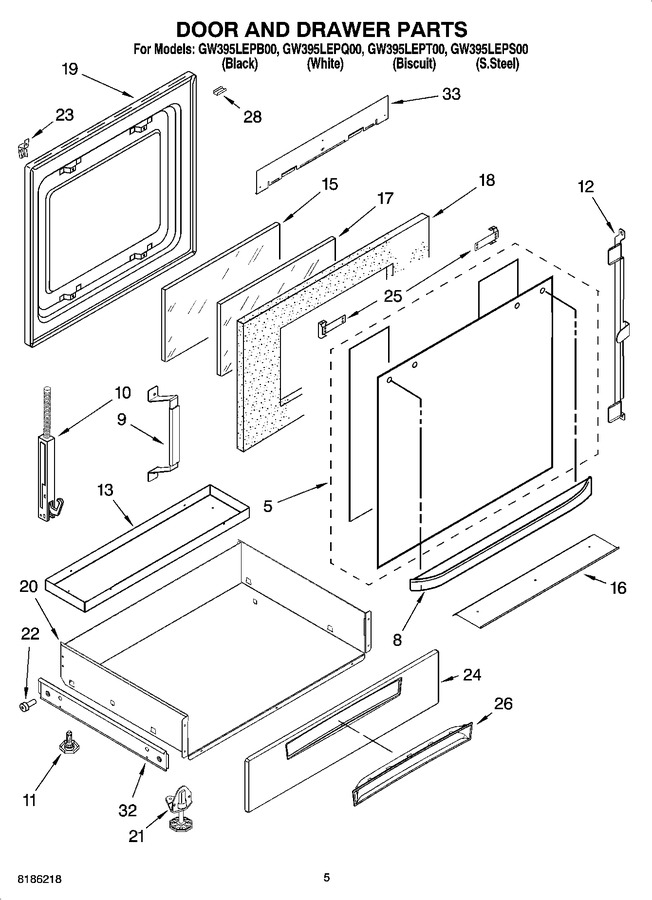

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 9759641 | Glass, Door Front (black) |
|
$ 127.72 | |||||
| 5 | WP9759074 | Glass, Door Front (s.steel) (Replaces: 9759642) |
|
$ 376.41 | |||||
| 5 | 9759640 | Glass, Door Front (biscuit) |
|
- | |||||
| 5 | 9759639 | Glass, Door Front (white) |
|
$ 173.45 | |||||
| 8 | 4448856 | Handle, Door (biscuit) |
|
- | |||||
| 8 | 4448855 | Handle, Door (white) |
|
- | |||||
| 8 | 4448854 | Handle, Door (black) |
|
$ 74.07 | |||||
| 9 | 8302094 | Bracket, Central |
|
- | |||||
| 10 | WP9760572 | Hinge, Door (white Lh) (Replaces: 8300572) |
|
$ 95.97 | |||||
| 10 | WP9760571 | Hinge, Door (white Rh) (Replaces: 8300571) |
|
Immediately | $ 98.15 | ||||
| 11 | WPW10058460 | Foot, Rear (Replaces: 312701) |
|
Immediately | $ 7.07 | ||||
| 12 | WP9759229 | Bracket, Side (Replaces: 8302092) |
|
$ 160.71 | |||||
| 13 | 9757798 | Panel, Drawer |
|
- | |||||
| 15 | WP9757706 | Glass, Inner (Replaces: 9757706) |
|
Immediately | $ 127.76 | ||||
| 16 | 4457114 | Shield, Heat-bottom |
|
$ 186.68 | |||||
| 17 | WP4449263 | Glass, Inner (2) (Replaces: 4449263) |
|
Immediately | $ 151.10 | ||||
| 18 | WP4451722 | Insulation, Door (Replaces: 4451722) |
|
$ 162.66 | |||||
| 19 | WP9759413 | Liner, Door (Replaces: 4455618) |
|
$ 317.54 | |||||
| 20 | 9757806 | Drawer & Roller |
|
$ 182.02 | |||||
| 21 | WP3196037 | Foot, Front (Replaces: 3196037) |
|
$ 74.67 | |||||
| 21 | WP4449743 | Screw (Replaces: 4449743) |
|
$ 6.47 | |||||
| 22 | 814229 | Roller, Drawer (Replaces: 422604) |
|
Immediately | $ 51.23 | ||||
| 23 | 9759743 | Retainer, Door |
|
- | |||||
| 24 | 4453921SS | Front, Drawer (s.steel) |
|
- | |||||
| 24 | 4453921WH | Front, Drawer (white) |
|
- | |||||
| 24 | 4453921BL | Front, Drawer (black) |
|
- | |||||
| 24 | 4453921BT | Front, Drawer (biscuit) |
|
- | |||||
| 25 | 9763496 | Bracket, Handle (l.hand) |
|
- | |||||
| 25 | 9763497 | Bracket, Handle (r.hand) |
|
- | |||||
| 25 | W10276642 | Screw (Replaces: 4451040) |
|
$ 5.49 | |||||
| 26 | 9756674WH | Handle, Drawer (white) |
|
- | |||||
| 26 | 9756674BL | Handle, Drawer (black) |
|
- | |||||
| 26 | 9756674BT | Handle, Drawer (biscuit) |
|
- | |||||
| 28 | 4450863 | Retainer, Clip |
|
- | |||||
| 32 | 9756673 | Guide, Roller |
|
$ 65.49 | |||||
| 33 | 9757707 | Shield, Heat Top |
|
- |
