Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10035960 Control Panel (white) Special Order $ 159.00

1 W10035950 Control Panel (biscuit) Special Order $ 159.00

1 W10035940 Control Panel (stainless) Special Order $ 128.71

1 W10035970 Control Panel (black) Appelez-nous -
2 WP4449745 Screw   (Replaces: 4449745) Special Order $ 6.74

3 9760013 Control, Migration Special Order $ 291.05

4 9757119 Bracket, Console Appelez-nous -
5 3196172 Screw In-Stock Immediately $ 11.55

6 W10036100 Bracket, Oven Control Special Order $ 42.77

7 9757409 Support, Gas Valve Special Order $ 81.65

8 9756614BL Endcap Left (black) Special Order $ 25.68

8 9756614WH Endcap Left (white) Appelez-nous -
8 9756614BT Endcap Left (biscuit) Appelez-nous -
8 9756611WH Endcap Right (white) Appelez-nous -
8 9756611BT Endcap Right (biscuit) Appelez-nous -
8 9756611BL Endcap Right (black) Special Order $ 25.95

9 9759941BL Knob (black) Special Order $ 35.07

9 9759941WH Knob (white) Special Order $ 18.43

9 9759941BT Knob (biscuit) Appelez-nous -
10 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.16

11 9780271 Screw Appelez-nous -
12 W10078570 Membrane, Switch Assembly Special Order $ 193.33


    View Diagram in Separate Window     Print Icon   Print Part List

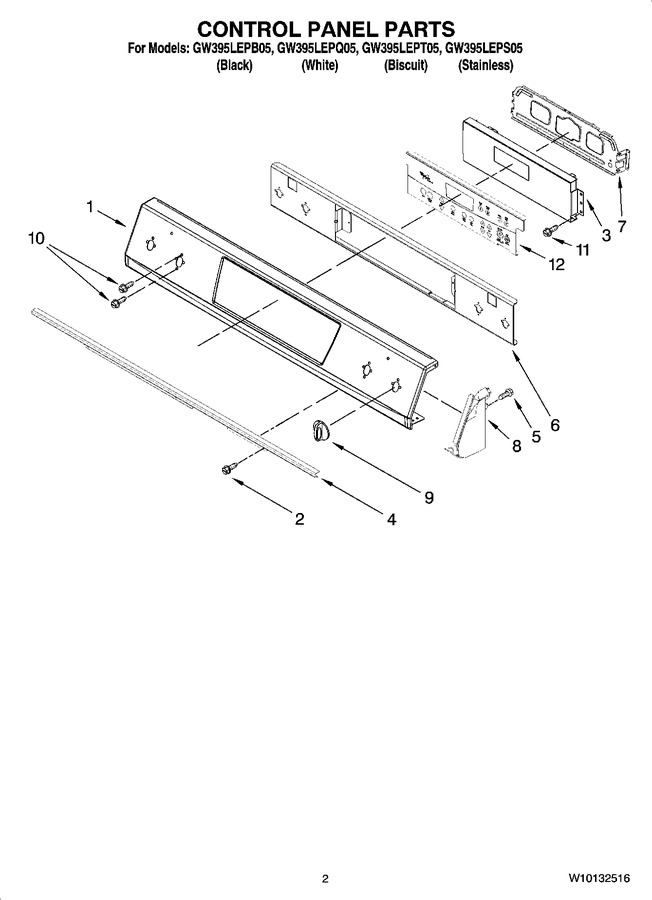

Diagram for GW395LEPT05
