Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9752980 Flame Shield, Broiler Special Order $ 38.26

2 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 12.62

3 W11684507 Screw   (Replaces: 3196385) Special Order $ 12.23

4 WPW10272546 Pan, Oven Bottom   (Replaces: 4453920) In-Stock Immediately $ 190.73

5 9757779 Fitting, Broiler Special Order $ 130.68

6 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 12.62

7 4454009 Cover, Ignitor Special Order $ 5.31

8 WPW10145744 Pan Support, Bake   (Replaces: 4453957) Special Order $ 183.56

9 WP9760229 Electrode, Bake Burner   (Replaces: 9760229) In-Stock Immediately $ 139.47

10 WP9760228 Burner, Bake   (Replaces: 9760228) Special Order $ 225.21

11 9752737 Shield, Oven Special Order $ 22.04

12 4453984 Shield, Bake Flame Appelez-nous -
13 WP9763716 Valve, Assembly   (Replaces: 9763716) In-Stock Immediately $ 481.13

14 9756831 Tube, Broil Special Order $ 155.53

15 W10111219 Burner, Broil Special Order $ 94.75

16 WP8054129 Electrode, Broil Burner   (Replaces: 8054129) In-Stock Immediately $ 123.43

17 W11684512 Screw   (Replaces: 3400080) Special Order $ 12.69


    View Diagram in Separate Window     Print Icon   Print Part List

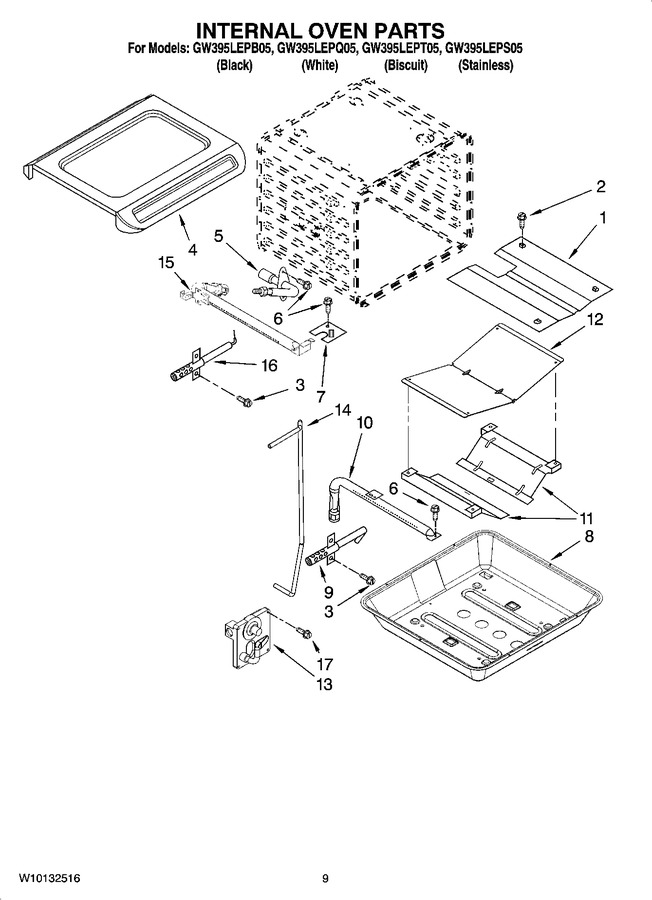

Diagram for GW395LEPT05
