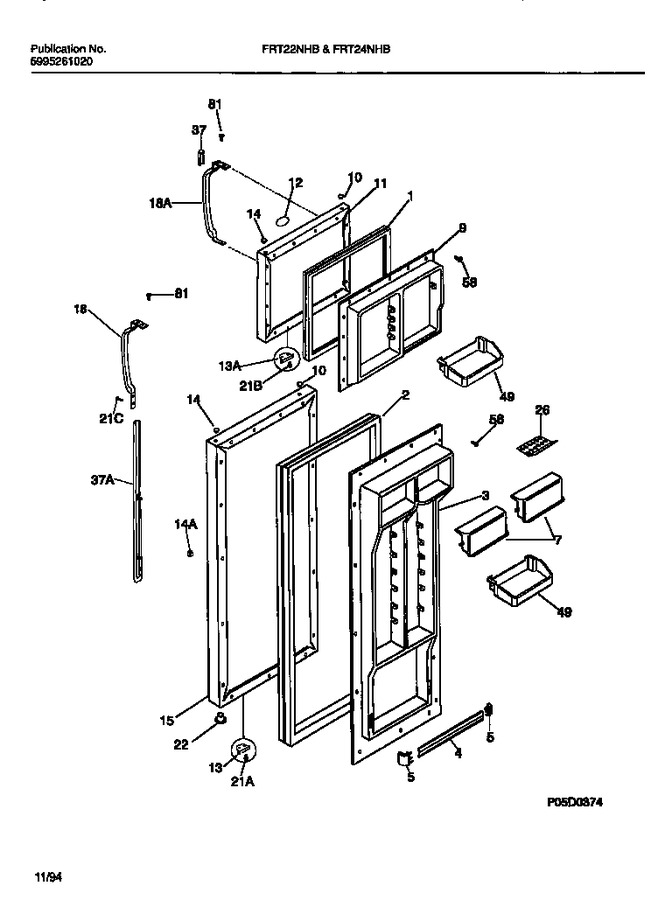

02 - Door Section


04 - Cabinet W/ Fan Assembly


05 - Shelves, Controls, Divider, Mullion


06 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215776715		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	215732417		Gasket, Refr Door, White, Magnetic		Appelez-nous	-
3	215784001		Panel, Inner Door, Refr		Appelez-nous	-
4	215516221		Rack, Door		Appelez-nous	-
5	125552601		Support, Door Rack, Rh/lh		Appelez-nous	-
7	5303304569		Door-dairy		Appelez-nous	-
9	5303292371		Panel, Inner Door, Frzr		Appelez-nous	-
10	5303292413		Plug-button, White, Hinge Brg Hole				$ 4.94
11	215486701		Panel-frzr Door, White, W/foam Insulatn		Appelez-nous	-
12	215008601		Nameplate Assy, White		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
14	215352101		Plug-button, White, Handle Mtg		Appelez-nous	-
15	5303917504		Panel, Refr Door, White, W/foam Insulatn		Appelez-nous	-
18	215826301		Handle-door, White, Refr, Hard-grip				$ 204.33
22	5303289320		Bearing-hinge				$ 19.69
26	215817806		Tray-egg				$ 13.46
37	215941101		Trim-handle,1.95``,white,upper W/chrome Band		Appelez-nous	-
49	215441502		Bin-door, Gallon   (Replaces: 215441501)				$ 176.87
58	5308002748		Screw		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
*52006	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	215030001		Door Stop, White, Frzr				$ 29.61
14A	240494001		Plug-button,white ,refr Door Front ,   (Replaces: 215352201)			Immediately	$ 18.20
18A	215826201		Handle-door, White, Frzr,hard-grip		Appelez-nous	-
21A	215218600		Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4		Appelez-nous	-
21B	215218700		Screw-door Stop Mtg, Torx Pan Head,10-16 X 3/4		Appelez-nous	-
21C	218843801		Screw   (Replaces: 5303001001)				$ 14.41
37A	215867022		Trim, Handle, White, Lower, W/chrome Band, And Snap Locks		Appelez-nous	-
