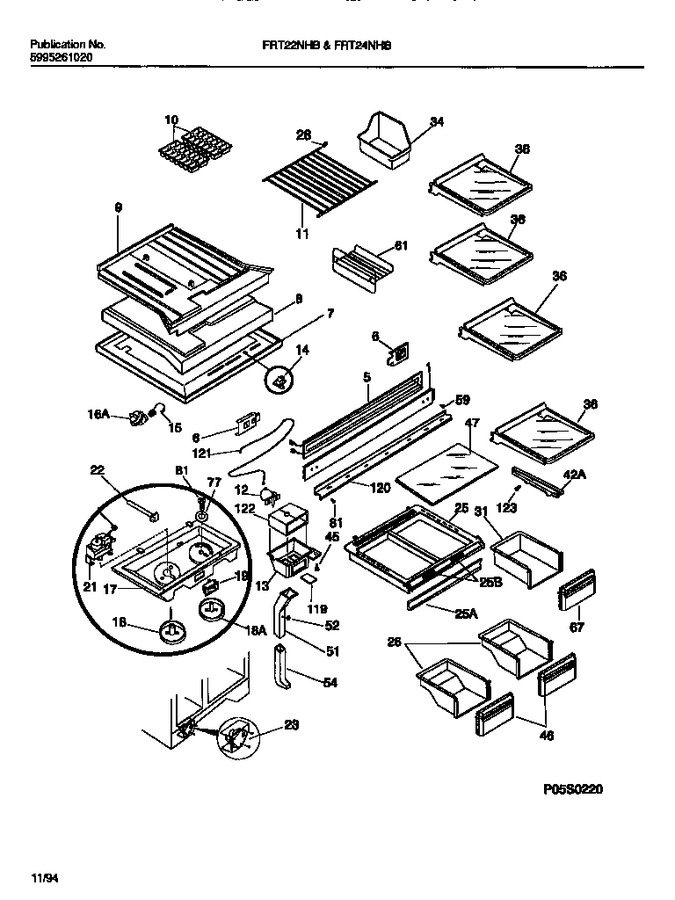

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215002201		Mullion, White		Appelez-nous	-
5	215096800		Heater-mullion		Appelez-nous	-
6	218279800		Tappin Plate, Mullion Mtg, (2)		Appelez-nous	-
7	5303001380		Screw		Appelez-nous	-
7	215055803		Top Panel-refr		Appelez-nous	-
8	215062700		Divider,styrofoam		Appelez-nous	-
9	215058300		Bottom Panel-frzr		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	218159700		Spacer, Frzr Shelf (not Illustrated)		Appelez-nous	-
11	215934600		Spacer, Frzr Shelf (not Illustrated)		Appelez-nous	-
11	5303297948		Shelf-freezer,flat,full-width,wire		Appelez-nous	-
12	215363900		Washer, Air Deflectr (not Illustrated)		Appelez-nous	-
12	215363800		Spacer, Air Deflectr (not Illustrated)		Appelez-nous	-
12	215132300		Deflector, Air, ``paddle``		Appelez-nous	-
13	5308016567		Nut, Anchor (not Illustrated)		Appelez-nous	-
13	215420300		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	215935700		Nut, Anchor, Control Box Mtg (not Illustrated)		Appelez-nous	-
17	215932903		Box-control		Appelez-nous	-
18	5303296667		Knob-temp Control,refr		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker				$ 27.08
21	5303305487		Control, Temperature		Appelez-nous	-
21	5303001260		Screw				$ 6.73
22	215932100		Housing,cont Cap Tube		Appelez-nous	-
23	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
23	215846602		Timer-defrost   (Replaces: 5303275811)			Immediately	$ 28.20
23	215277000		Cover, Defrost Timer, Top (not Illustrated)		Appelez-nous	-
23	5303289058		Shield, Defrost Timr, Btm (not Illustrated)		Appelez-nous	-
25	215216616		Cover, Crisper Pan, With Beam, Trim, Humid Cont		Appelez-nous	-
26	215298001		Pan-crisper(2)				$ 122.12
28	215341200		Cap-protector				$ 2.54
31	5303292388		Pan-meat		Appelez-nous	-
34	5303289069		Container-ice		Appelez-nous	-
36	215406102		Shelf, Cantilever, ``spill, Safe``, Half, (4)		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5303292657		Front-crisper Pan,(2)		Appelez-nous	-
47	5303304625		Insert-pan Cover,glass		Appelez-nous	-
51	215132801		Duct, Meat Keeper, Upper		Appelez-nous	-
51	215133200		Insullation, Air Duct, Rear (not Illustrated)		Appelez-nous	-
51	215133300		Insulation, Air Duct, Front (not Illustrated)		Appelez-nous	-
52	215132901		Control, Damper, Meat Kpr Duct		Appelez-nous	-
52	215133000		Damper, Air, Meat Kpr Duct (not Illustrated)		Appelez-nous	-
54	215133100		Duct, Meat Keeper, Lower		Appelez-nous	-
59	240442708		Screw-hinge/mullion , 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
61	215781501		Shelf-ice Tray, Wire				$ 136.19
67	5303292662		Front-meat Pan		Appelez-nous	-
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
119	215132700		Cap, Air Duct				$ 18.38
120	218019201		Seal-refr Top		Appelez-nous	-
121	215364001		Cable-damper Contrl				$ 82.01
121	215209400		Nut, Push, On, Damper Cable (not Illustrated)		Appelez-nous	-
122	215132502		Block, Air Deflector		Appelez-nous	-
123	215005101		Screw-roller/hanger,8-10 X 7/16   (Replaces: 215005100)				$ 14.89
*52003	215339900		Clip, Cantilevr Shlf				$ 5.83
*52004	215848000		Spacer-air Channel		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
18A	5303296668		Knob-temp Control,frzr		Appelez-nous	-
25A	5303298486		Trim, Crisper Cover		Appelez-nous	-
25B	5303301393		Control-humidity		Appelez-nous	-
42A	215002401		Hanger, Pan/tray, Rh (not Illustrated)				$ 85.84
42A	215002301		Hanger-pan / Tray, Lh				$ 65.82
