SELECT A DIAGRAM

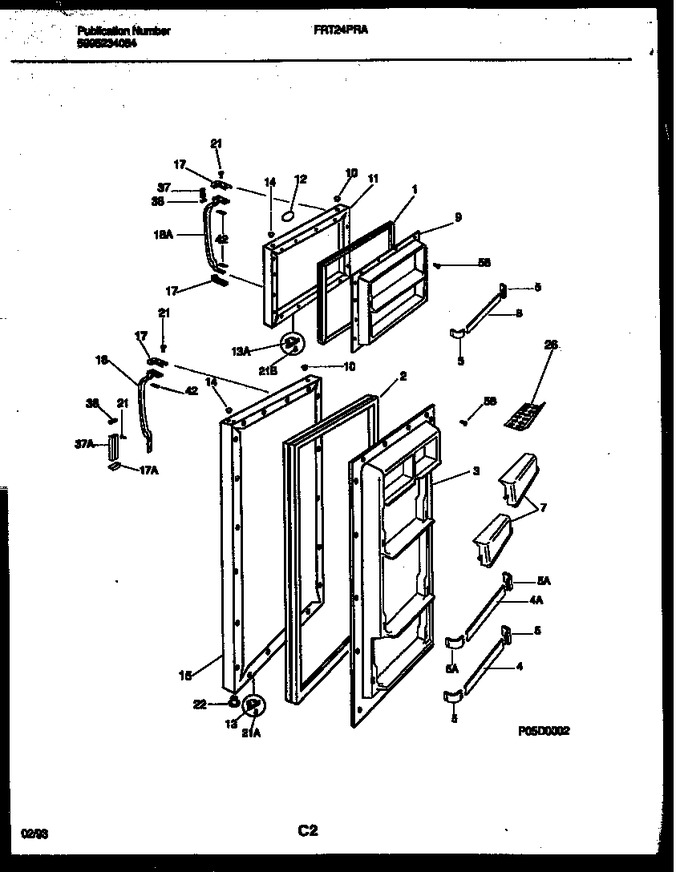

02 - Door Parts


03 - Cabinet Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Shelves And Supports


07 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303292419		Gasket-frzr Door, Magnetic, Almond		Appelez-nous	-
2	5303292421		Gasket-refr Door, Magnetic, Almond		Appelez-nous	-
3	215251801		Panel-inner Door, Refr		Appelez-nous	-
4	215516220		Rack-door, Full-width   (Replaces: 5303293988)				$ 54.58
5	215251401		Support-door Rack, ``2-liter``, Rh/lh		Appelez-nous	-
7	5303292422		Door-dairy, (2)		Appelez-nous	-
8	5303293992		Rack-door, Full-width, (2)		Appelez-nous	-
9	215252001		Panel-inner Door, Frzr		Appelez-nous	-
10	5303292414		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	215210411		Panel-frzr Door, Almond, W/foam Insulatn		Appelez-nous	-
12	215008602		Nameplate Assy, Almond		Appelez-nous	-
13	5303289522		Door Stop, Refr Door				$ 40.17
14	215352111		Plug-button, Almond, Handle Mtg		Appelez-nous	-
15	215210211		Panel-refr Door, Almond, W/foam Insulatn		Appelez-nous	-
17	215188411		Handle End, Almond		Appelez-nous	-
18	215190611		Handle-door, Almond, Refr		Appelez-nous	-
21	215201400		Screw-handle Mtg, Torx Flat Head, 8-18(ab) X 5/8, (8)		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	215817806		Tray-egg, Water Clear   (Replaces: 5303284457)				$ 13.46
37	215126807		Trim-handle, 1.27``, Almond, Upper		Appelez-nous	-
38	215117301		Band-decorative,handle		Appelez-nous	-
42	215209000		Shim-handle		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*71807	5303007739		Insulation, Door, Fiberglass, (bulk)		Appelez-nous	-
*71807	215352211		Plug-button,almond ,refr Door Front ,		Appelez-nous	-
13A	215030011		Door Stop, Almond, Frzr		Appelez-nous	-
17A	215100011		Handle End, Almond				$ 20.58
18A	215190511		Handle-door, Almond, Frzr		Appelez-nous	-
21A	215218600		Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4		Appelez-nous	-
21B	215218700		Screw-door Stop Mtg, Torx Pan Head,10-16 X 3/4		Appelez-nous	-
37A	215126802		Trim-handle, 2.98``, Almond, Lower		Appelez-nous	-
4A	5303293987		Rack-door, Full-width, (2)		Appelez-nous	-
5A	215251501		Support-door Rack, ``gallon``, Rh/lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
