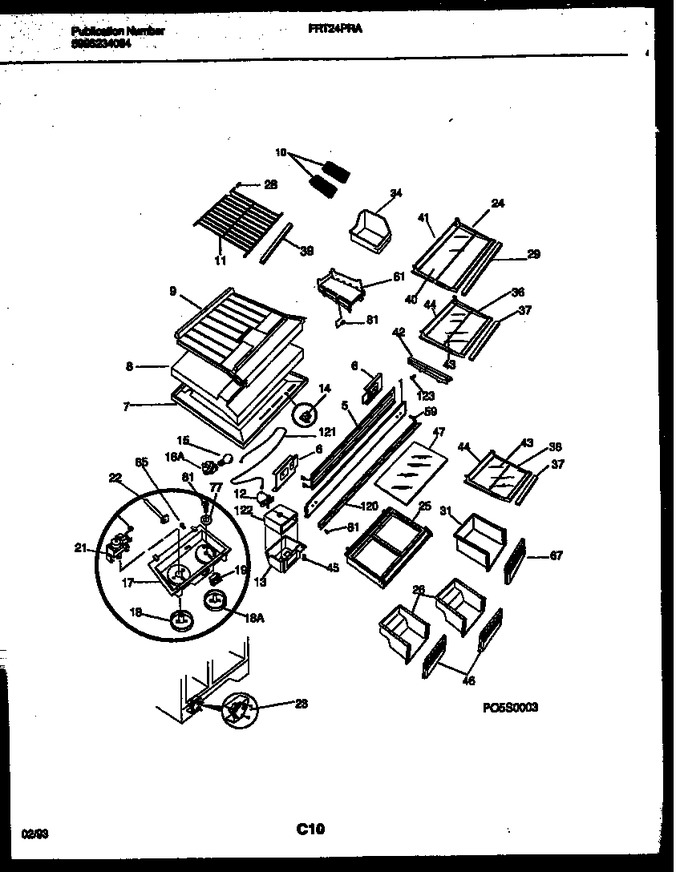

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
43	5303292425		Shelf-glass, Half Shelf, (2)		Appelez-nous	-
44	5303292423		Trim-half Shelf, Snap-on, Rear, (2)		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5303291323		Front, Crisper Pan, (2)		Appelez-nous	-
47	5303292438		Insert-crisper Cvr, Glass		Appelez-nous	-
59	215097000		Screw-hinge/mullion, Torx Head, 10-24 X 7/8		Appelez-nous	-
61	215781501		Compartmnt-ice Tray				$ 136.19
65	5303274946		Rivet, Plastic		Appelez-nous	-
67	5303292670		Front, Meat Pan		Appelez-nous	-
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
120	215007102		Seal-refr Top		Appelez-nous	-
121	215364001		Cable-damper Contrl				$ 82.01
122	215132501		Block-air Deflector		Appelez-nous	-
123	08014528		Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P				$ 4.31
*71820	215339900		Clip, Cantilevr Shlf				$ 5.83
*71820	5303211351		Lock, Rear Trim		Appelez-nous	-
121A	215209400		Nut,push-on,damper Cable (non-illustrated)		Appelez-nous	-
