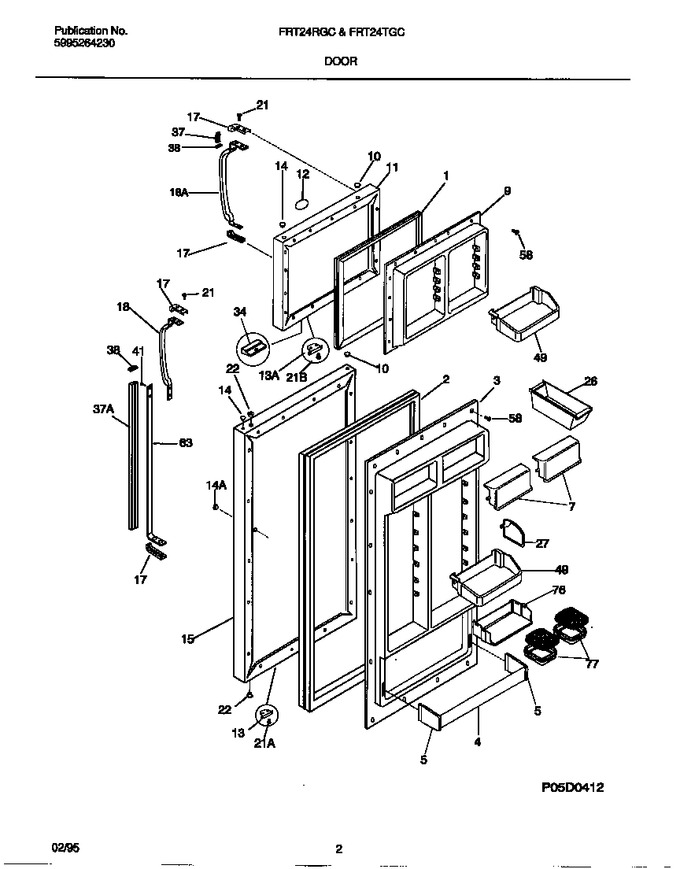

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215776714 | Gasket-frzr Door, White, Magnetic |
|
- | |||||
| 2 | 215732418 | Gasket-refr Door, White, Magnetic |
|
- | |||||
| 3 | 215816801 | Panel, Inner Door, Refr |
|
- | |||||
| 4 | 215516256 | Rack-door |
|
- | |||||
| 5 | 218758602 | Support-door Rack, Rh/lh (Replaces: 215552601) |
|
Immediately | $ 23.39 | ||||
| 7 | 5303308308 | Door-dairy, (2) |
|
- | |||||
| 9 | 215004301 | Panel, Inner Door, Frzr |
|
- | |||||
| 10 | 5303292413 | Plug-button, White, Hinge Brg Hole |
|
$ 4.94 | |||||
| 11 | 215210401 | Panel-frzr Door, White, W/foam Insulatn |
|
- | |||||
| 12 | 215008604 | Label-nameplate, White (not Illustrated) |
|
- | |||||
| 12 | 218364004 | Frame-nameplate, White |
|
- | |||||
| 12 | 5315340712 | Tape, Adhesive, 12`` Lg, Foam, Double-faced (not Illustra |
|
- | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 13 | 215030001 | Door Stop, White, Frzr |
|
$ 29.61 | |||||
| 14 | 240494001 | Plug-button,white ,refr Door Front , (Replaces: 215352201) |
|
Immediately | $ 18.20 | ||||
| 14 | 215352101 | Plug-button, White, Handle Mtg |
|
- | |||||
| 15 | 215210201 | Panel-refr Door, White, W/foam Insulatn |
|
- | |||||
| 17 | 218025601 | Handle End, White |
|
- | |||||
| 18 | 215983201 | Handle-door, White, Refr, Soft Grip |
|
- |
