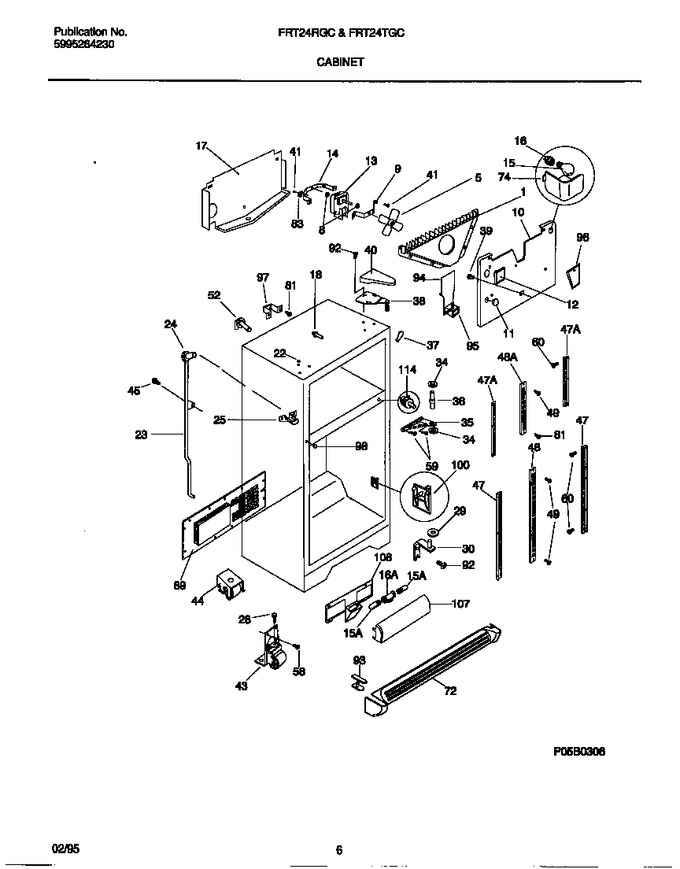

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215937600		Shroud-evap Fan Mtg				$ 65.94
5	5303292398		Fan Blade				$ 50.35
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303292396		Bracket-motor Mtg,front				$ 72.30
10	5303300185		Cover-evap Coil		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	5303292393		Plug-decorative,icemaker Holes		Appelez-nous	-
14	240438003		Bracket-motor Mtg,rear   (Replaces: 5303292397)				$ 17.44
15	215812200		Light Bulb/lamp,25w				$ 16.54
15	218188900		Light Bulb/lamp, Crisper Light, (2)		Appelez-nous	-
16	5308000129		Socket-light/lamp				$ 62.16
16	5303299157		Socket-light/lamp, Crisper Light				$ 63.63
17	5303292440		Trough-drain		Appelez-nous	-
18	215245000		Support-evap Cover				$ 25.20
22	215134501		Plug-button,white,upr Hinge Holes		Appelez-nous	-
23	215266301		Tube Drain, W/seal Ring				$ 72.14
24	5303207353		Seal Ring, Drain Tube				$ 6.81
28	5303289062		Bolt-roller Adj,hex Head,5/16-24 X 7/8		Appelez-nous	-
29	215003200		Washer, .40x.63x .16,nylon				$ 54.86
34	215095400		Washer-ctr Hinge Pin				$ 6.35
35	215002601		Bracket-ctr Hinge, White		Appelez-nous	-
36	215095900		Pin-center Hinge				$ 19.58
37	5303202336		Trim-cabinet Corner, White		Appelez-nous	-
38	218158000		Bracket-upper Hinge		Appelez-nous	-
39	08006983		Spacer-divider		Appelez-nous	-
40	218374401		Cover-upper Hinge, White		Appelez-nous	-
41	5308000039		Screw		Appelez-nous	-
44	215163900		Roller Assy, Rear,(2)		Appelez-nous	-
13A	215464100		Motor-evap Fan		Appelez-nous	-
13B	215474201		Washer, ``slinger``, Nylon, Evap Fan Shaft (not Illustrated)			Immediately	$ 18.43
25A	5303292412		Spout-drain Tube				$ 13.81
25B	5303001361		Pin-mounting, Push-in, Plastic (not Illustrated)		Appelez-nous	-
30A	218150800		Bracket-lower Hinge, W/ Hinge Pin		Appelez-nous	-
30B	5303289290		Tapping Plate, Lh (not Illustrated)		Appelez-nous	-
30C	5303289291		Tapping Plate, Rh (not Illustrated)		Appelez-nous	-
43A	5303289059		Roller Assy,front,(2)		Appelez-nous	-
43B	5308017044		Screw-roller Mtg, Spcl Ind Hex Hd, 5/16-18(23) X 7/8 (not Illustrated)				$ 6.34
