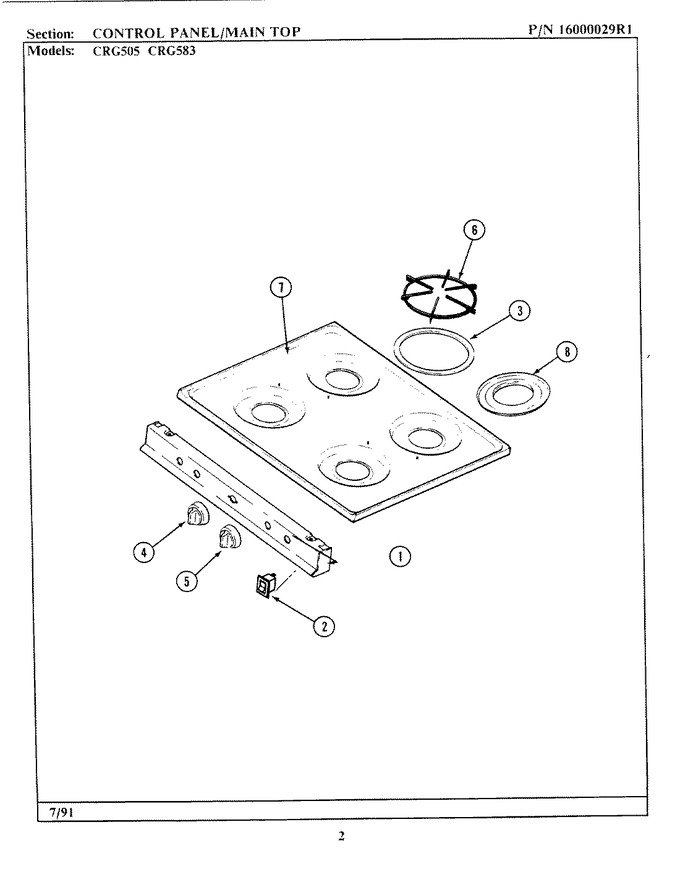

04 - Control Panel/main Top
05 - Door/drawer
06 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7712A067-60 | Trim Assy | 00 |
|
- | ||||
| 1 | WP4159193 | Screw (Replaces: 7118P004-60) | 00 |
|
$ 4.29 | ||||
| 2 | 7403P067-60 | Switch, Rocker (blk) | 00 |
|
$ 91.35 | ||||
| 3 | 7720P115-60 | Trim, Burner Ring Single | 00 |
|
- | ||||
| 4 | 7731P032-60 | Knob, Thermostat | 00 |
|
- | ||||
| 5 | 7733P051-60 | Knob, Valve | 07 |
|
- | ||||
| 5 | 7733P036-60 | Knob, Valve | 00 |
|
- | ||||
| 6 | 2003W005-00 | Grate Assy, Burner T34f | 00 |
|
- | ||||
| 7 | 2001F040-84 | Top, Main Almond | 00 |
|
- | ||||
| 7 | 2001F040-81 | Top, Main White | 00 |
|
- | ||||
| 8 | 7725P005-60 | Bowl, Drip | 00 |
|
- | ||||
| 8 | WP4159193 | Screw (Replaces: 7118P004-60) | 00 |
|
$ 4.29 | ||||
| 8 | 3802F029-80 | Brace, Main Top | 00 |
|
- | ||||
| 8 | 1430345 | Gas Drip Bowl Kit | 00 |
|
- |
