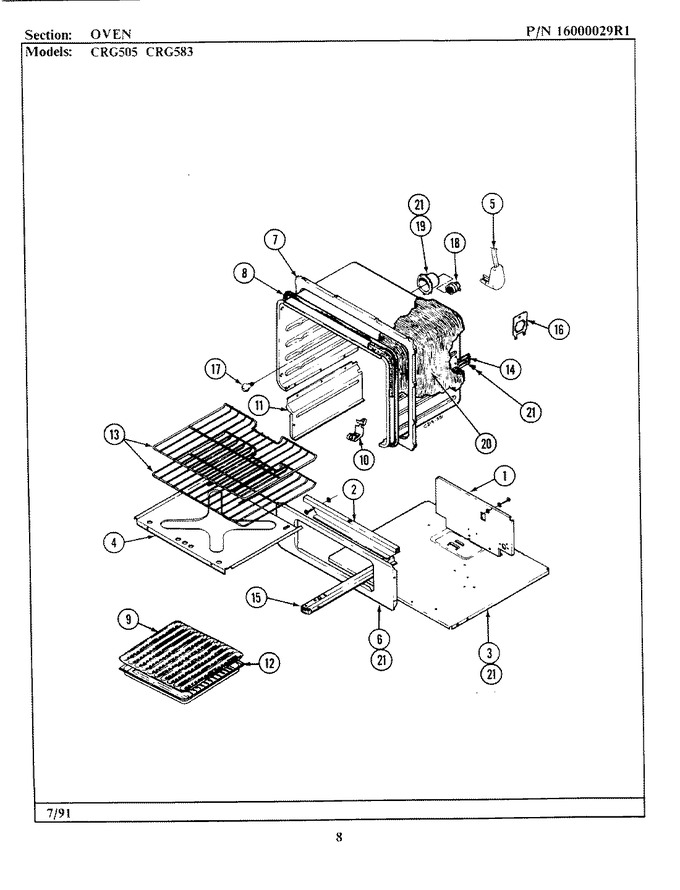

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control
03 - Control Panel
04 - Control Panel/main Top
05 - Door/drawer
06 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F078-45 | Back, Broiler | 00 |
|
- | ||||
| 1 | 4002F124-45 | Back, Broiler | 01 |
|
- | ||||
| 2 | 3601W124-23 | Baffle, Oven Frt | 00 |
|
- | ||||
| 3 | 4011F161-80 | Bottom, Broiler | 00 |
|
- | ||||
| 4 | 2205F012-23K | Bottom, Oven | 00 |
|
- | ||||
| 4 | 2205F012-21 | Bottom, Oven | 10 |
|
- | ||||
| 5 | 7402P014-60 | Cord, Power | 00 |
|
- | ||||
| 6 | 2201F034-23 | Front, Oven Lower | 00 |
|
- | ||||
| 6 | 2201F074-19 | Frame, Lower Oven | 10 |
|
- | ||||
| 7 | WP74003976 | Screw W/washer (Replaces: 7101P124-60) | 00 |
|
$ 6.47 | ||||
| 7 | 2201F060-23 | Front, Oven Upper | 00 |
|
- | ||||
| 8 | 7212P001-60 | Seal | 00 |
|
- | ||||
| 9 | 4396923 | Insert, Broil Pan (Replaces: 3413F002-19) | 10 |
|
Immediately | $ 52.04 | |||
| 9 | 3413F002-23 | Insert, Broil Pan | 00 |
|
- | ||||
| 9 | Y3413F01619 | Insert, Broil Pan | 14 |
|
- | ||||
| 10 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 00 |
|
Immediately | $ 11.07 | |||
| 11 | 4009F045-45 | Lining, Broiler Side | 00 |
|
- | ||||
| 12 | Y3401F02019 | Pan, Broil | 14 |
|
- | ||||
| 12 | 4396923 | Pan, Broil (Replaces: 3401F004-19) | 10 |
|
Immediately | $ 52.04 | |||
| 12 | 4396923 | Pan, Broil (Replaces: 3401F004-23) | 00 |
|
Immediately | $ 52.04 | |||
| 13 | 7801P032-60 | Rack | 00 |
|
- | ||||
| 14 | 3807F205-45 | Support, Oven Rear | 00 |
|
- | ||||
| 15 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 00 |
|
$ 6.70 | ||||
| 15 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 15 | 3404A013-51 | Track, Broiler Dwr Right | 00 |
|
- | ||||
| 15 | 3404A014-51 | Track, Broiler Dwr Left | 00 |
|
- | ||||
| 16 | 3801F020-45 | Bracket | 00 |
|
- | ||||
| 16 | 7401P012-60 | Block, Disconnect | 00 |
|
- | ||||
| 16 | 8007P003-60 | Bushing, Snap | 00 |
|
- | ||||
| 17 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 00 |
|
Immediately | $ 1.98 | |||
| 18 | 7408P002-60 | Receptacle, Lamp | 00 |
|
- | ||||
| 18 | 4005F088-80 | Cover | 00 |
|
- | ||||
| 19 | 4001F016-23 | Housing, Lamp | 00 |
|
- | ||||
| 20 | 7002P038-60 | Insulation, Wrapper | 00 |
|
- | ||||
| 21 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 |
