SELECT A DIAGRAM

Diagram for 02 - Backguard
02 - Backguard

Diagram for 03 - Cooktop Parts
03 - Cooktop Parts

Diagram for 04 - Door Parts
04 - Door Parts

Diagram for 05 - Broiler Drawer Parts
05 - Broiler Drawer Parts

Diagram for 06 - Burner, Manifold And Gas Control
06 - Burner, Manifold And Gas Control

Diagram for 07 - Body Parts
07 - Body Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303204495 Trim-wrapper Appelez-nous -
2 5303212536 Plate - Instr Mtg Appelez-nous -
3 3017105 Panel Control Appelez-nous -
4 3203078 Nut-decorative (2) Appelez-nous -
5 3051113 Bezel, Nameplate Appelez-nous -
6 3131644 Name Plate Appelez-nous -
7 3131607 Fastener-glass Appelez-nous -
8 5303131237 Support, Backguard Appelez-nous -
9 3051874 Trim, Lower Splasher Appelez-nous -
10 3131468 Bracket, Backguard Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

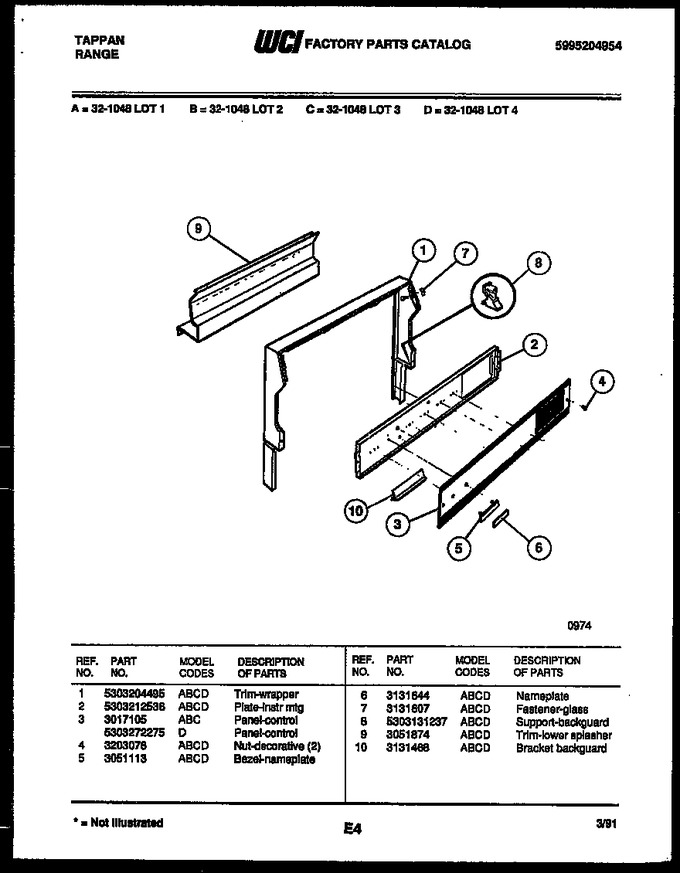

Diagram for 32-1048-23-01
