02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Drawer Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

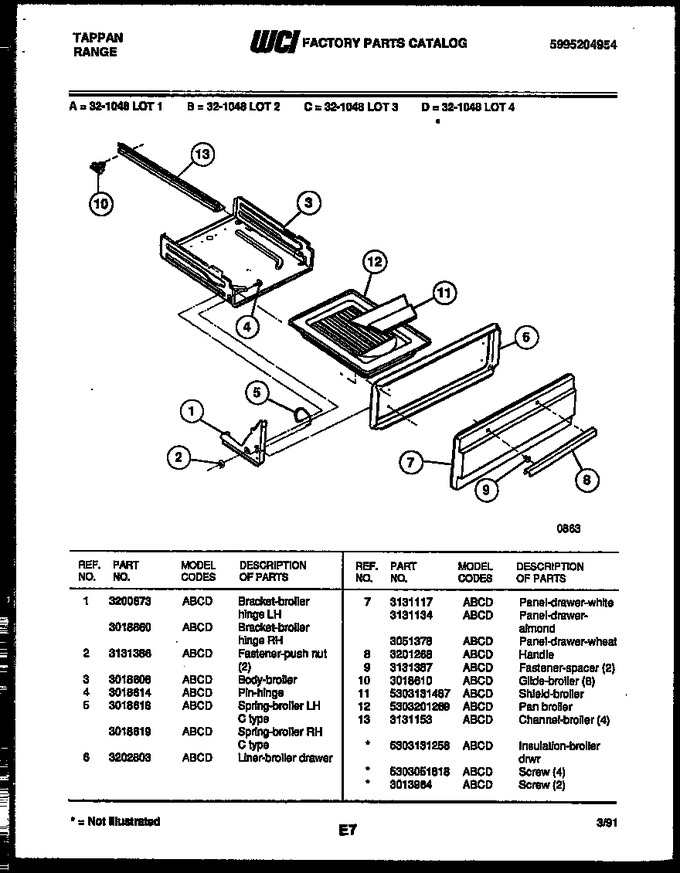

| 1 | 3200673 | Bracket, Broiler Hinge, Lh |
|
- | |||||
| 2 | 3131386 | Fastener, Push Nut (2) |
|
- | |||||
| 3 | 3018608 | Body, Broiler |
|
- | |||||
| 4 | 3018614 | Pin-hinge |
|
- | |||||
| 5 | 3018618 | Spring, Broiler Lh C Type |
|
- | |||||
| 6 | 3202803 | Liner, Broiler Drawer |
|
- | |||||
| 7 | 3131134 | Panel-drawer-almond |
|
- | |||||
| 8 | 3201268 | Handle |
|
- | |||||
| 9 | 3131387 | Fastener-spacer (2) |
|
- | |||||
| 10 | 3018610 | Glide-broiler (6) |
|
$ 29.40 | |||||
| 11 | 5303131487 | Shield-broiler |
|
- | |||||
| 12 | 5303201269 | Pan Broiler |
|
- | |||||
| 13 | 3131153 | Channel, Broiler (4) |
|
- | |||||
| *18237 | 5303051818 | Screw (4) |
|
- | |||||
| *18237 | 5303131258 | Insulation - Broiler Drwr |
|
- | |||||
| *18238 | 3013964 | Screw (2) |
|
- | |||||
| 1A | 3018860 | Bracket, Broiler Hinge, Rh |
|
- | |||||
| 5A | 3018619 | Spring, Broiler, Rh, C Type |
|
- |
