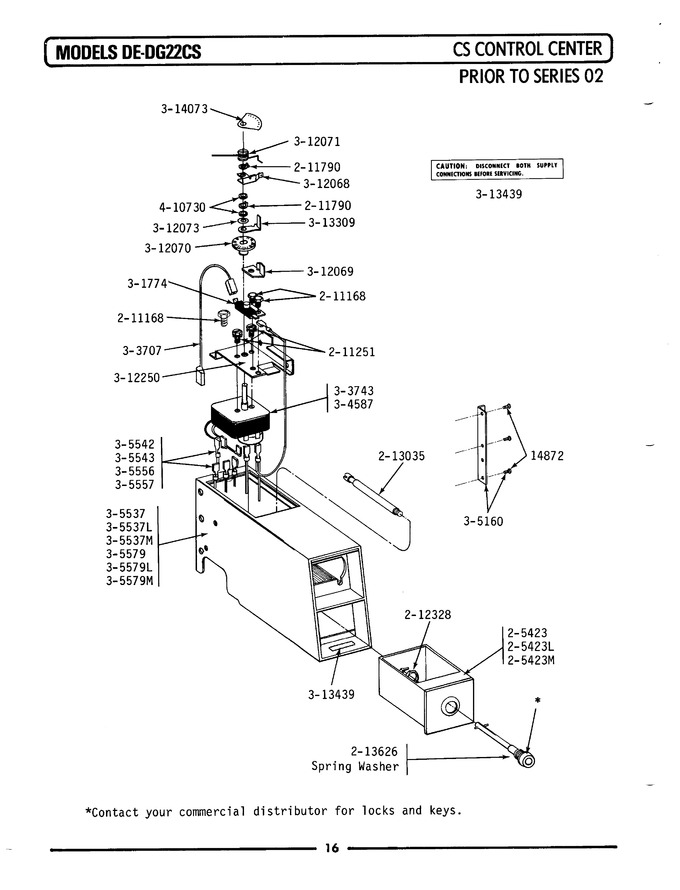

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | Y014872 | Screw, No.10 X 3/8 | 00 |
|
- | ||||
| 002 | 208883 | Coin Box-white (Replaces: 205423) | 00 |
|
- | ||||
| 002 | 208883 | Coin Box-almond (Replaces: 205423L) | 00 |
|
- | ||||
| 003 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | 00 |
|
$ 6.75 | ||||
| 004 | 211251 | Screw | 00 |
|
- | ||||
| 005 | 211790 | Lock Ring For Timer Shaft | 00 |
|
$ 6.54 | ||||
| 006 | W11395752 | Nut, Hex (Replaces: 212328) | 00 |
|
$ 11.74 | ||||
| 007 | 213035 | Bolt, Locking | 00 |
|
$ 5.84 | ||||
| 008 | NLA | Spring Washer For Lock | 00 |
|
- | ||||
| 009 | Y301774 | Switch For Coin Slide | 00 |
|
- | ||||
| 010 | Y303707 | Wire Assembly | 00 |
|
- | ||||
| 011 | Y303743 | Timer | 00 |
|
- | ||||
| 012 | NLA | Timer Motor | 00 |
|
- | ||||
| 013 | NLA | Coin Meter Stop With Screws | 00 |
|
- | ||||
| 014 | 305537 | Outer Case-white | 00 |
|
- | ||||
| 014 | NLA | Outer Case-almond | 00 |
|
- | ||||
| 015 | NLA | Wire Harness-lower | 00 |
|
- | ||||
| 016 | NLA | Wire Harness-upper | 00 |
|
- | ||||
| 017 | NLA | Control Center-white | 00 |
|
- | ||||
| 018 | Y312068 | Return Lever | 00 |
|
$ 16.46 | ||||
| 019 | Y312069 | Stop For Actuator | 00 |
|
- | ||||
| 020 | NLA | Ratchet For Timer | 00 |
|
- | ||||
| 021 | Y312071 | Return Spring For Actuator | 00 |
|
- | ||||
| 022 | 312073 | Spring Washer | 00 |
|
- | ||||
| 023 | 312250 | Timer Support Bracket | 00 |
|
- | ||||
| 024 | Y313309 | Timer Actuator Lever | 00 |
|
- | ||||
| 025 | Y313439 | Instruction Label | 00 |
|
- | ||||
| 026 | 314073 | Time Indicator Gage | 00 |
|
- | ||||
| 027 | 410730 | Washer | 00 |
|
- |
