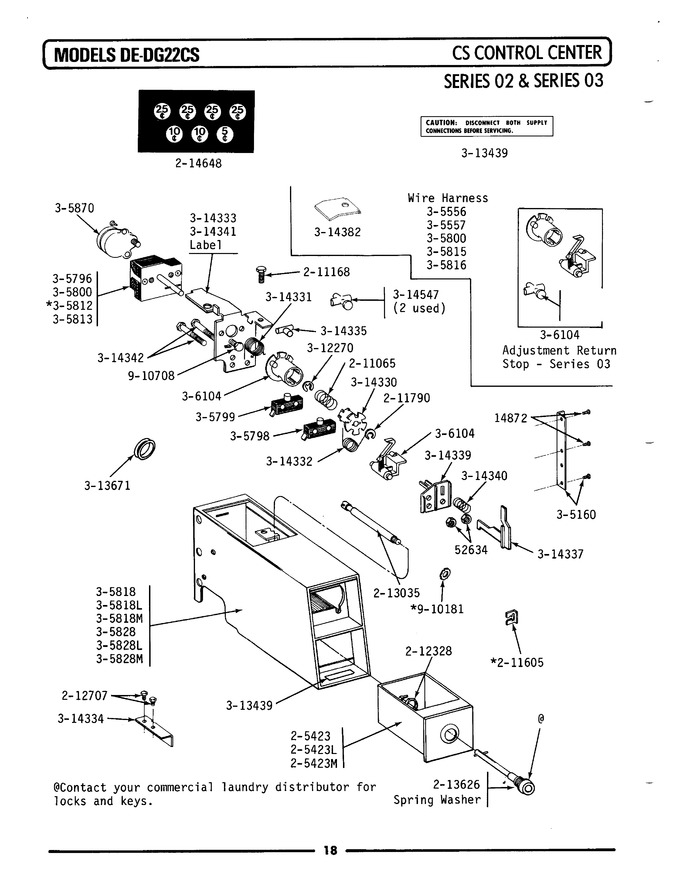

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | Y014872 | Screw, No.10 X 3/8 | 02 |
|
- | ||||
| 002 | M0282005 | Hex. Nut, No.6-32 (Replaces: Y052634) | 02 |
|
$ 7.07 | ||||
| 003 | 208883 | Coin Box-white (Replaces: 205423) | 02 |
|
- | ||||
| 003 | 208883 | Coin Box-almond (Replaces: 205423L) | 02 |
|
- | ||||
| 004 | 211065 | Spring, Timer Knob | 02 |
|
$ 5.70 | ||||
| 005 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | 02 |
|
$ 6.75 | ||||
| 006 | 211605 | Retainer, Timer Knob | 02 |
|
- | ||||
| 007 | 211790 | Lock Ring For Timer Shaft | 02 |
|
$ 6.54 | ||||
| 008 | W11395752 | Nut, Hex (Replaces: 212328) | 02 |
|
$ 11.74 | ||||
| 009 | W11684507 | Screw (Replaces: 212707) | 02 |
|
$ 12.23 | ||||
| 010 | 213035 | Bolt, Locking | 02 |
|
$ 5.84 | ||||
| 011 | NLA | Spring Washer For Lock | 02 |
|
- | ||||
| 012 | 214648 | Coinage Decal | 02 |
|
- | ||||
| 013 | NLA | Coin Meter Stop With Screws | 02 |
|
- | ||||
| 014 | 305796 | Timer | 02 |
|
$ 154.49 | ||||
| 015 | 305798 | Bypass Switch For Motor | 02 |
|
- | ||||
| 016 | Y305799 | Bypass Switch For Heater | 02 |
|
$ 29.88 | ||||
| 017 | 305800 | Wire Harness For Timer | 02 |
|
- | ||||
| 018 | 305812 | Timer 240-50 | 02 |
|
- | ||||
| 019 | 305813CP | Timer - Canada Rpr (Replaces: 305813) | 02 |
|
- | ||||
| 020 | 305815 | Wire Harness - Lower | 02 |
|
- | ||||
| 021 | NLA | Wire Harness-upper | 02 |
|
- | ||||
| 022 | NLA | Outer Case (wht) | 02 |
|
- | ||||
| 023 | NLA | Control Center-white | 02 |
|
- | ||||
| 024 | 305870 | Timer Motor Rpr | 02 |
|
- | ||||
| 025 | 306104 | Torsion-timer Kit | 03 |
|
- | ||||
| 026 | Y312270 | E Clip | 02 |
|
- | ||||
| 027 | Y313439 | Instruction Label | 02 |
|
- | ||||
| 028 | Y313671 | Grommet For Control Center | 02 |
|
- | ||||
| 029 | 314330 | Driver For Index Wheel | 02 |
|
$ 2.15 | ||||
| 030 | 314331 | Return Spring | 02 |
|
$ 36.13 | ||||
| 031 | 314332 | Actuator Spring | 02 |
|
- | ||||
| 032 | 314333 | Timer Mounting Bracket | 02 |
|
- | ||||
| 033 | 314334 | Bracket For Coin Slide | 02 |
|
- | ||||
| 034 | 314335 | Time Adjustment Peg | 02 |
|
$ 5.22 | ||||
| 035 | 33002968 | Slider (Replaces: 314337) | 02 |
|
$ 41.03 | ||||
| 036 | 314339 | Switch And Slider Bracket | 02 |
|
- | ||||
| 037 | NLA | Helical Spring ----n | 02 |
|
- | ||||
| 038 | NLA | Instruction Label | 02 |
|
- | ||||
| 039 | NLA | Screw | 02 |
|
- | ||||
| 040 | NLA | Stop For Timer Mechanism | 02 |
|
- | ||||
| 041 | Y308109 | Adjustment Return Stop (Replaces: 314547) | 03 |
|
$ 53.59 | ||||
| 042 | 910181 | Lock Washer | 02 |
|
- | ||||
| 043 | WP488234 | Screw -relay To Tub Support (Replaces: 910708) | 02 |
|
$ 6.07 |
