SELECT A DIAGRAM

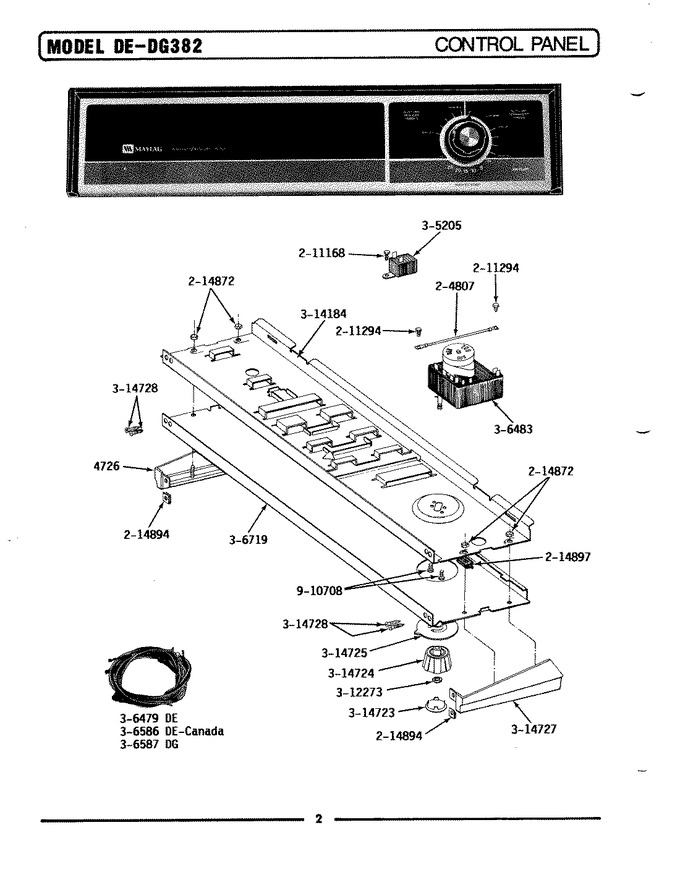

01 - Control Panel


02 - Front Panel & Door Assembly


03 - Front View


04 - Inlet Duct & Heater Assembly


05 - Installation Accessories


06 - Lint Screen, Tumbler (front & Back)


07 - Motor\blower\base Frame\thermostats


08 - Rear View


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	204807		Grnd.wire,supp.plte To Top Cvr	00	Appelez-nous	-
2	WPW10139210		Screw, No.8 X 5/16 Inch   (Replaces: 211168)	00			$ 6.75
3	WP90767		Screw   (Replaces: 211294)	00		Immediately	$ 7.04
4	214872		Palnut, End Cap	00	Appelez-nous	-
5	214894		Fastener, End Cap	00	Appelez-nous	-
6	214897		Pad, Control Panel	00	Appelez-nous	-
7	WP694419		Buzzer - Non-adjustable   (Replaces: 305205)	00			$ 114.90
8	306479		Main Wire Harness	00	Appelez-nous	-
9	306483		Timer	00	Appelez-nous	-
10	306586		Main Wire Harness	00	Appelez-nous	-
11	306587		Main Wire Harness	00	Appelez-nous	-
12	306719		Control Panel	00	Appelez-nous	-
13	W10155650		Nut   (Replaces: 312273)	00			$ 12.03
14	314184		Back Up Plate	00	Appelez-nous	-
15	WPW10133501		Cap For Timer Knob   (Replaces: 314723)	00			$ 54.76
16	W11232017		Knob For Timer   (Replaces: 314724)	00			$ 11.13
17	314725		Timer Dial Indicator	00	Appelez-nous	-
18	314726		End Cap - Left Hand	00	Appelez-nous	-
19	314727		End Cap - Right Hand	00	Appelez-nous	-
20	314728		Screw,ctrl.pnl & End Cap(blk)	00	Appelez-nous	-
21	WP488234		Screw -relay To Tub Support   (Replaces: 910708)	00			$ 6.07

    View Diagram in Separate Window       Print Part List
