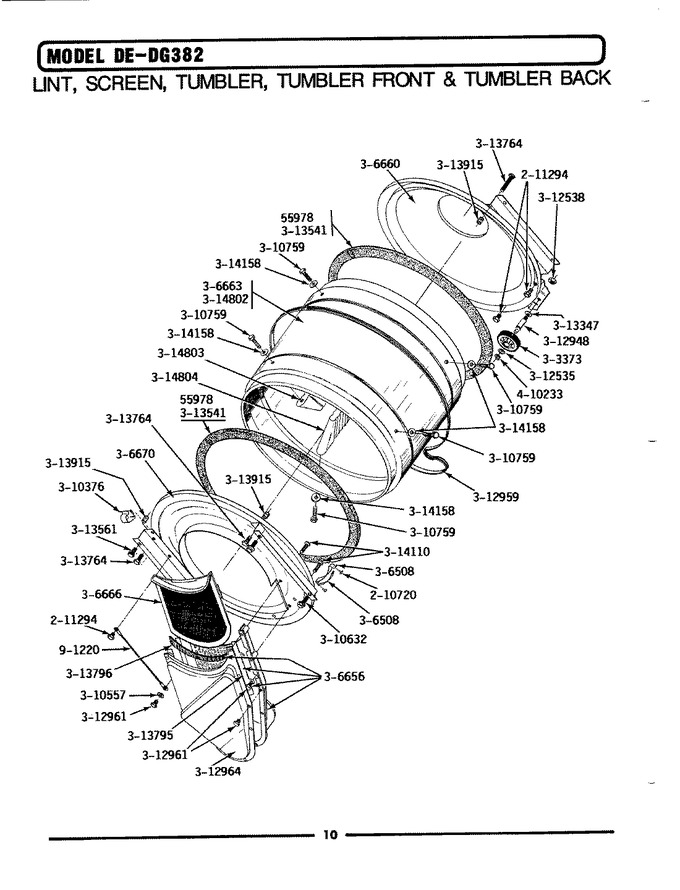

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y055978 | Rubber Adhesive, 2 Oz Tube | 00 |
|
$ 38.40 | ||||
| 2 | WP210720 | Rivet (Replaces: 210720) | 00 |
|
$ 12.14 | ||||
| 3 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 4 | 12001541 | Bearing & Roller Assembly (Replaces: Y303373) | 00 |
|
Immediately | $ 27.92 | |||
| 5 | 306508 | Tumbler Bearing Kit | 00 |
|
Immediately | $ 20.77 | |||
| 6 | 306656 | Outlet Duct & Grid Assembly | 00 |
|
- | ||||
| 7 | 306657 | Outlet Duct & Grid | 00 |
|
- | ||||
| 8 | Y306660 | Tumbler Back | 00 |
|
- | ||||
| 9 | 306663 | Tumbler W/baffles | 00 |
|
- | ||||
| 10 | WP33001003 | Lint Screen (Replaces: Y306666) | 00 |
|
Immediately | $ 43.47 | |||
| 11 | 306670 | Tumbler Front----na | 00 |
|
- | ||||
| 12 | Y310376 | Clip, Wire Harness | 00 |
|
- | ||||
| 13 | 310557 | Washer | 00 |
|
- | ||||
| 14 | Y310632 | Screw | 00 |
|
- | ||||
| 15 | Y310759 | Screw | 00 |
|
$ 5.75 | ||||
| 16 | WP312535 | Washer, Roller Shaft (Replaces: 312535) | 00 |
|
Immediately | $ 10.25 | |||
| 17 | WP33001443 | Nut, Roller Shaft (Replaces: 312538) | 00 |
|
$ 7.15 | ||||
| 18 | Y312948 | Shaft, Tumbler Roller | 00 |
|
- | ||||
| 19 | WPY312959 | Belt, Tumbler & Motor (Replaces: Y312959) | 00 |
|
Immediately | $ 30.66 | |||
| 20 | WPW10116751 | Screw (Replaces: Y312961) | 00 |
|
$ 6.74 | ||||
| 21 | Y312964 | Outlet Duct - Outer Half | 00 |
|
- | ||||
| 22 | WP312535 | Washer, Spring (roller Shaft) (Replaces: Y313347) | 00 |
|
Immediately | $ 10.25 | |||
| 23 | WP33313541 | Tumbler Seal (Replaces: Y313541) | 00 |
|
Immediately | $ 54.49 | |||
| 24 | Y313561 | Screw----na | 00 |
|
$ 5.27 | ||||
| 25 | 313764 | Screw | 00 |
|
- | ||||
| 26 | Y313795 | Guide For Lint Screen | 00 |
|
- | ||||
| 27 | Y313796 | Lint Seal | 00 |
|
$ 5.85 | ||||
| 28 | 313915 | Cover, Thread | 00 |
|
- | ||||
| 29 | WP3400065 | Screw, Inlet Duct (Replaces: Y314110) | 00 |
|
Immediately | $ 6.97 | |||
| 30 | 314158 | Washer | 00 |
|
$ 5.48 | ||||
| 31 | 314802 | Tumbler W/out Baffles | 00 |
|
- | ||||
| 32 | 314803 | Baffle (short) | 00 |
|
- | ||||
| 33 | 33001004 | Baffle (tall) (Replaces: 314804) | 00 |
|
$ 133.20 | ||||
| 34 | WP9703438 | Ring, Retaining (Replaces: 410233) | 00 |
|
Immediately | $ 3.81 | |||
| 35 | 901220 | Wire, Ground | 00 |
|
- |
