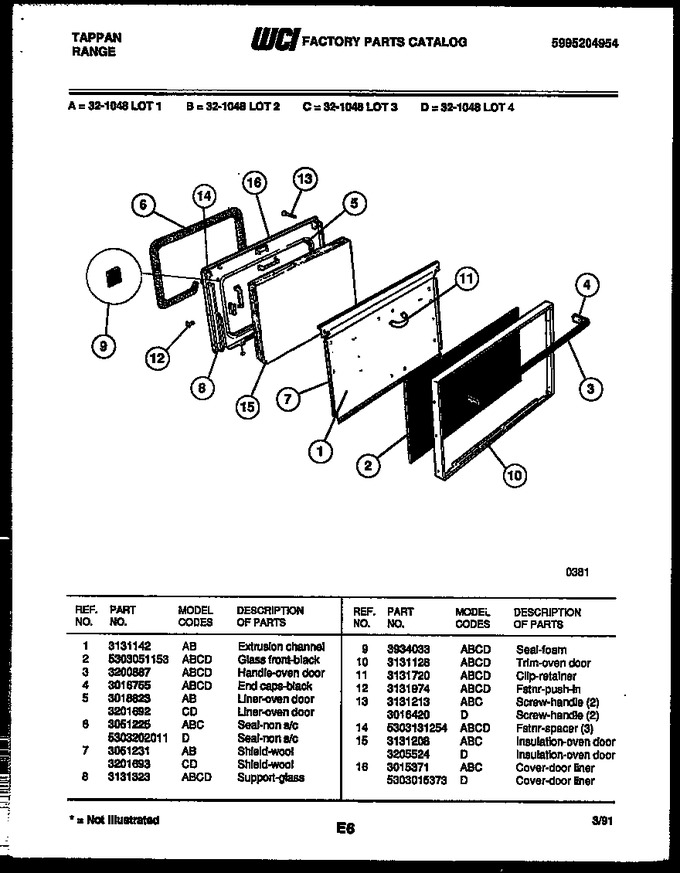

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303051153 | Glass-front-black |
|
- | |||||
| 3 | 3200887 | Handle-oven Door |
|
- | |||||
| 4 | 3016755 | End Caps-black |
|
- | |||||
| 5 | 3201692 | Liner, Oven Door |
|
- | |||||
| 6 | 5303202011 | Seal-non S/c |
|
$ 166.84 | |||||
| 7 | 3201693 | Shield, Wool |
|
- | |||||
| 8 | 3131323 | Support, Glass |
|
- | |||||
| 9 | 3934033 | Seal, Foam |
|
- | |||||
| 10 | 3131128 | Trim, Oven Door |
|
- | |||||
| 11 | 3131720 | Clip, Retainer |
|
- | |||||
| 12 | 3131974 | Fstnr Push In |
|
- | |||||
| 13 | 3016420 | Screw - Handle (2) |
|
- | |||||
| 14 | 5303131254 | Fstnr-spacer (3) |
|
- | |||||
| 15 | 3205524 | Insulation-oven Door |
|
- | |||||
| 16 | 5303015373 | Cover-door Liner |
|
- |
