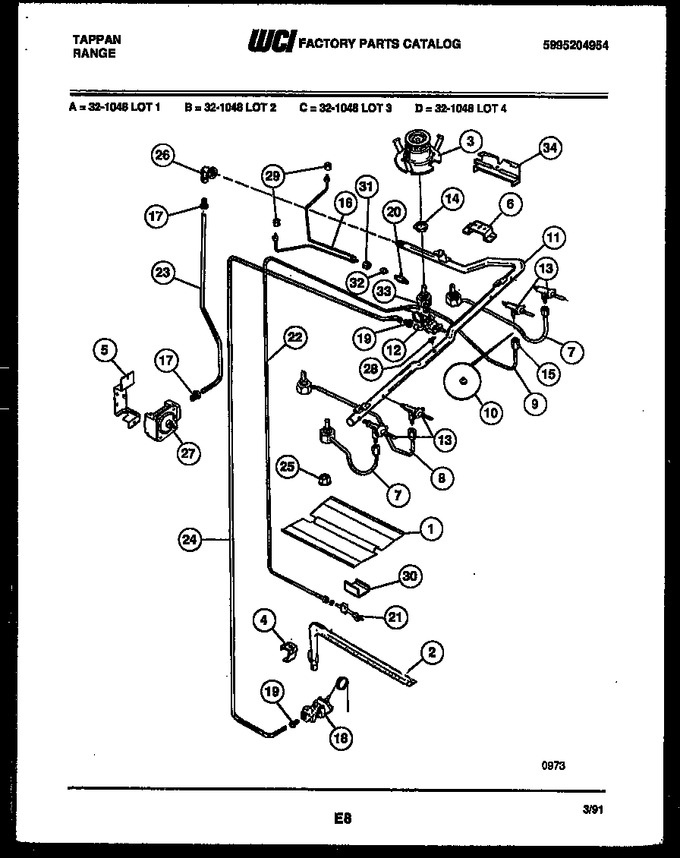

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203265 | Baffle-oven |
|
- | |||||
| 2 | 3131571 | Burner, Oven |
|
- | |||||
| 3 | 5303011567 | Burner-top Assembly |
|
- | |||||
| 4 | 3018603 | Bracket-oven Burner Mounting |
|
- | |||||
| 5 | 3131183 | Bracket Regulator |
|
- | |||||
| 6 | 3201270 | Brkt-burner Mtg (2) |
|
- | |||||
| 7 | 5303131970 | Burner Tube-rf & Lf |
|
- | |||||
| 8 | 5303011569 | Burner-tube-rr |
|
- | |||||
| 9 | 5303011570 | Burner-tube-lr |
|
- | |||||
| 10 | 08067945 | Ferrule (4) |
|
- | |||||
| 11 | 3201271 | Manifold Pipe |
|
- | |||||
| 12 | 5303201272 | Thermostat |
|
- | |||||
| 13 | 5303017542 | Valve-top Pos (4) |
|
- | |||||
| 14 | 3013279 | Nut, Special, 4 |
|
$ 2.34 | |||||
| 15 | 3131148 | Nut Compression (4) |
|
- | |||||
| 16 | 5303201273 | Tube-top Pilot Dual |
|
- | |||||
| 17 | 3131261 | Fitting, Loxit |
|
- | |||||
| 18 | 5303131405 | Valve-safety |
|
- | |||||
| 19 | 3131403 | Fitting, Loxit |
|
- | |||||
| 20 | 5303201274 | Filter |
|
- | |||||
| 21 | 3018613 | Pilot |
|
- | |||||
| 22 | 3018623 | Tube-oven Pilot |
|
- | |||||
| 23 | 5303014477 | Tube-alum 3/8 |
|
- | |||||
| 24 | 3018624 | Tube-alum. 3/8 |
|
- | |||||
| 25 | 3013272 | Nut |
|
- | |||||
| 26 | 08067948 | Elbow |
|
- | |||||
| 27 | 5303018606 | Control-regulator |
|
- | |||||
| 28 | 3018601 | Adapter-thermo |
|
- | |||||
| 29 | 5303201275 | Cap-top Pilot, (2) |
|
- | |||||
| 30 | 3131204 | Shield-standing Pilot |
|
- | |||||
| 31 | 3201276 | Nut Compression 3/16 |
|
- | |||||
| 32 | 5303201277 | Ferrule 3/16 |
|
- | |||||
| 33 | 3131404 | Fitting, Loxit |
|
- | |||||
