Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10242828 Guide-quick Reference Appelez-nous -
1 W10259811 Use & Care Guide Appelez-nous -
1 W10251252 Cook Guide Label Appelez-nous -
1 W10242831 Tech Sheet Appelez-nous -
1 W10321811 Installation Instructions Appelez-nous -
2 W10251248 Panel, Control (stainless) Special Order $ 227.23

2 W10251247 Panel, Control (white) Special Order $ 159.13

3 W10317093 Board, Display Special Order $ 198.45

4 W10770413 Control, Unit   (Replaces: W10251246) In-Stock Immediately $ 265.13

5 W10251251 Knob Special Order $ 149.24

6 W11086664 Button   (Replaces: W10251249) In-Stock Immediately $ 20.69

7 W11116990 Holder, Button   (Replaces: W10251250) In-Stock Immediately $ 28.16

8 W11086664 Switch   (Replaces: W10251249) In-Stock Immediately $ 20.69

9 W11116990 Housing, Switch   (Replaces: W10251250) In-Stock Immediately $ 28.16

10 W10696315 Support, Panel   (Replaces: W10253042) Special Order $ 119.57

11 8186858 Ring, Clamp Special Order $ 8.74

12 W10251401 Disc, Function Special Order $ 71.96


    View Diagram in Separate Window     Print Icon   Print Part List

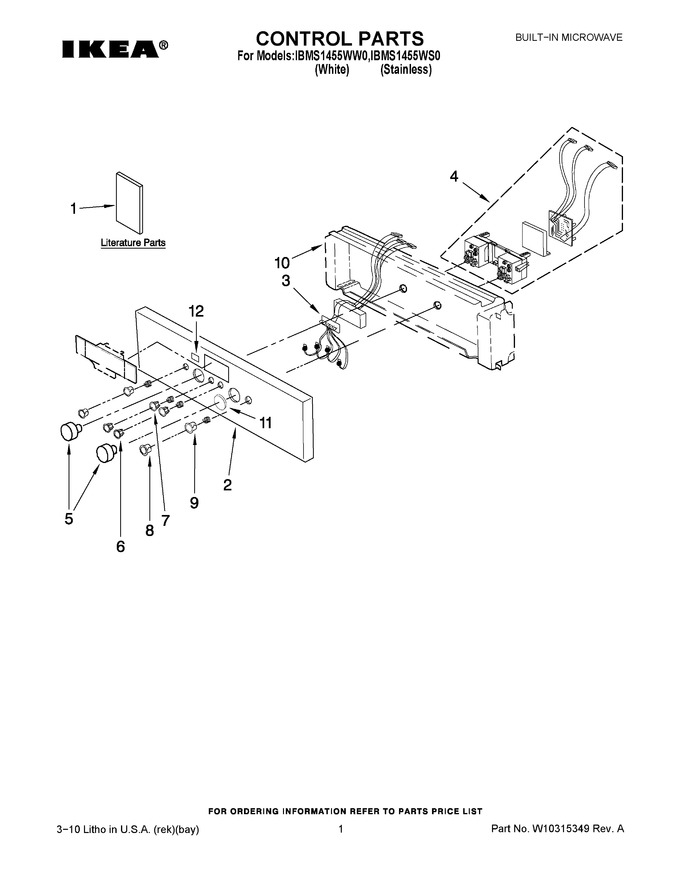

Diagram for IBMS1455WS0
