01 - Control Parts
02 - Cabinet Parts
03 - Door Parts
04 - Top Venting Parts
05 - Oven Interior Parts
06 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

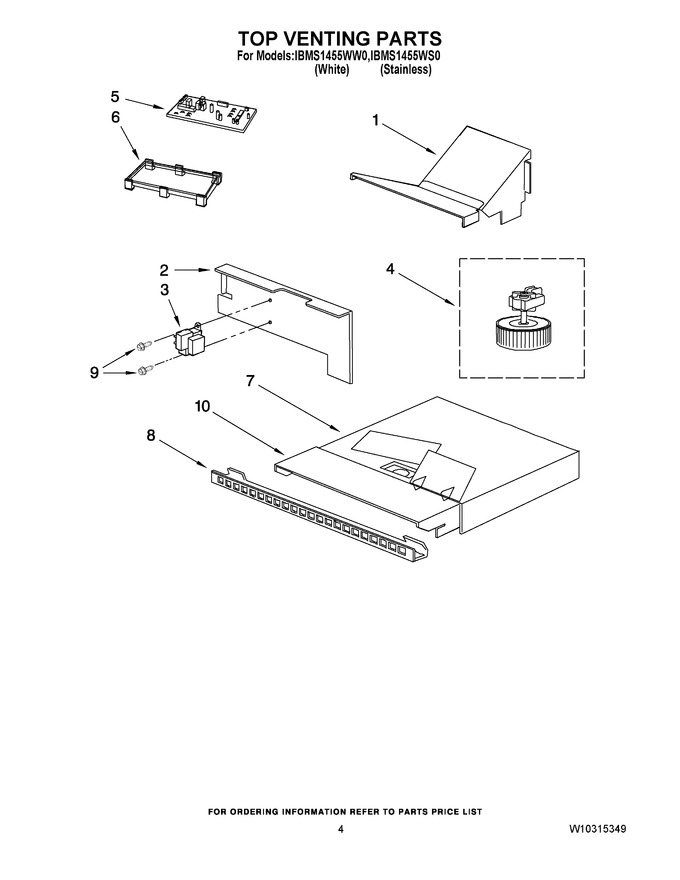

| 1 | W10141633 | Air Duct |
|
- | |||||
| 2 | 8205740 | Air Guide |
|
- | |||||
| 3 | W11238401 | Transformer, Lamp (Replaces: 8205692) |
|
Immediately | $ 309.33 | ||||
| 4 | W10120517 | Motor, Fan Assy |
|
$ 284.00 | |||||
| 5 | W10217471 | Control, Electronic |
|
$ 200.36 | |||||
| 6 | W10130897 | Holder, Control |
|
- | |||||
| 7 | 8205705 | Top Chassis |
|
- | |||||
| 8 | 461967749811 | Vent, Control Panel (Replaces: 8205719) |
|
$ 131.87 | |||||
| 9 | 461967825321 | Screw (Replaces: 4375202) |
|
$ 10.40 | |||||
| 10 | W10141634 | Cover-plate |
|
$ 92.66 |
