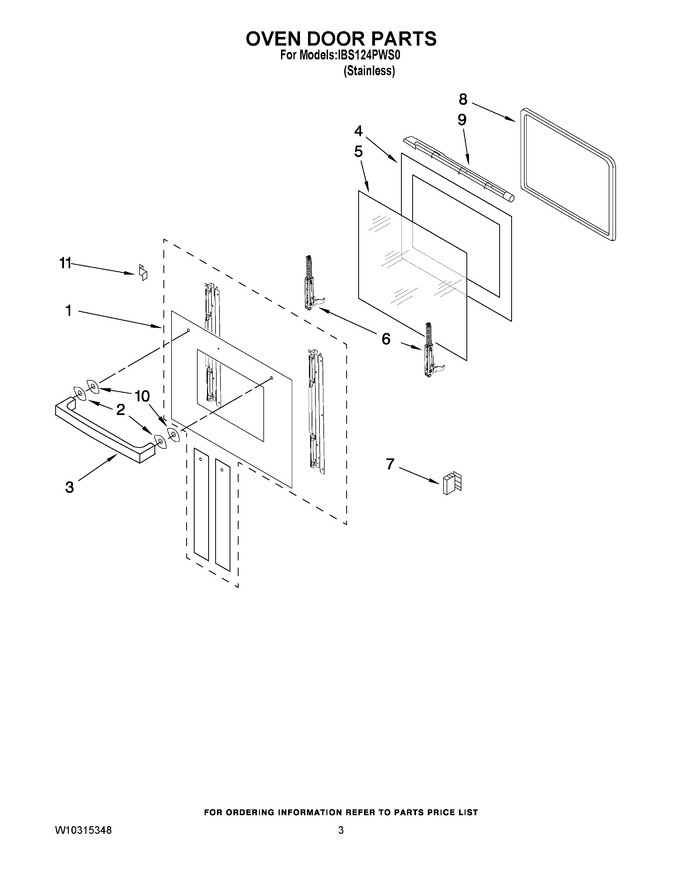

02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10322155		Assy, Door Glass (stainless)		Appelez-nous	-
2	W10260705		Spacer, Handle		Appelez-nous	-
3	8186906		Handle, Door		Appelez-nous	-
4	W10260704		Glass, Inner		Appelez-nous	-
5	8186848		Glass, Inner		Appelez-nous	-
6	W10260701		Hinge, Door		Appelez-nous	-
7	W10240561		Glass, Support		Appelez-nous	-
8	8186849		Gasket, Door		Appelez-nous	-
9	8186844		Vent, Exhaust		Appelez-nous	-
10	W10322156		Spacer, Handle		Appelez-nous	-
11	8186923		Stopper, Mount		Appelez-nous	-
