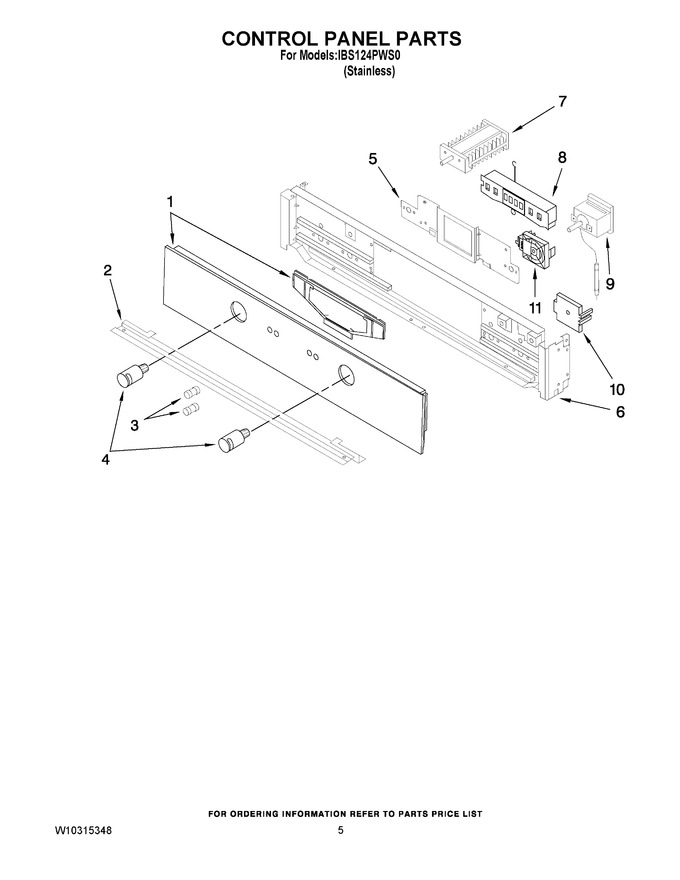

04 - Control Panel Parts


05 - Top Venting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10260707		Panel, Control (stainless)		Appelez-nous	-
2	W10240555		Trim, Lower		Appelez-nous	-
3	W10240567		Button, Push (2)		Appelez-nous	-
4	8186908		Knob (rh)				$ 34.90
4	8186909		Knob (lh)				$ 36.67
5	N/P		Bracket, Display (not Serviced)		Appelez-nous	-
6	N/P		Bracket (not Serviced)		Appelez-nous	-
7	8186879		Switch, Oven				$ 153.91
8	W10260709		Control, Oven				$ 98.09
9	W10240572		Thermostat (oven)				$ 180.73
9	8186874		Thermostat (broil)				$ 166.83
10	W10240574		Regulator		Appelez-nous	-
11	W10240573		Encoder				$ 182.50
