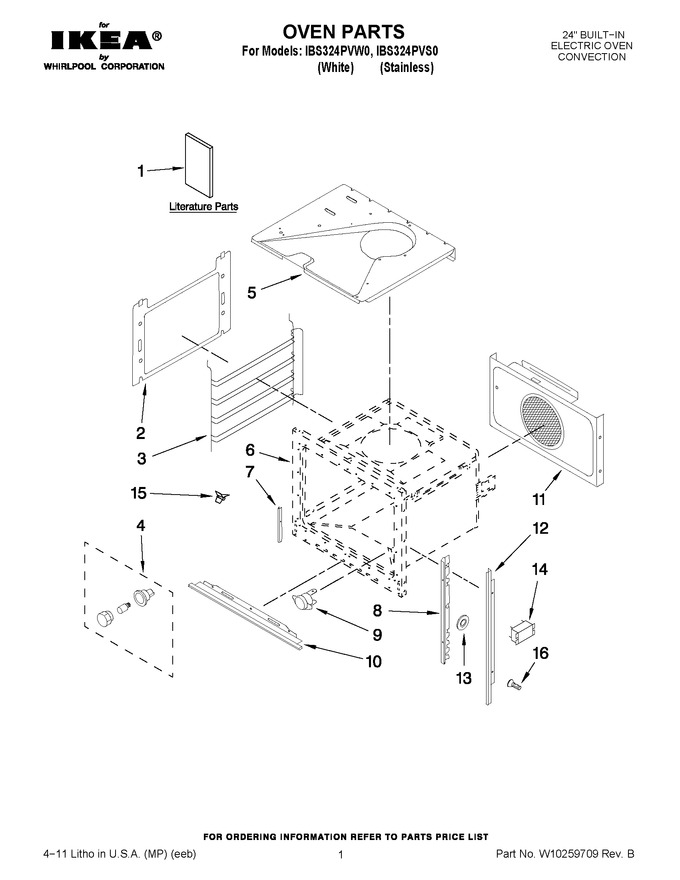

01 - Oven Parts
02 - Oven Door Parts
03 - Internal Oven Parts
04 - Control Panel Parts
05 - Top Venting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10259726 | Installation Instructions |
|
- | |||||
| 1 | W10259722 | Use & Care Guide |
|
- | |||||
| 1 | W10259725 | Sheet, Tech |
|
- | |||||
| 2 | 8186851 | Panel, Side |
|
- | |||||
| 3 | 8186855 | Support (rh) |
|
- | |||||
| 3 | 8186856 | Support (lh) |
|
- | |||||
| 4 | 8186880 | Assy, Oven Light |
|
- | |||||
| 5 | N/P | Top, Chassis (not Serviced) |
|
- | |||||
| 6 | N/P | Liner, Oven (not Serviced) |
|
- | |||||
| 7 | 8186841 | Cover, Hinge |
|
- | |||||
| 8 | 8186837 | Rail, Side (rh) |
|
- | |||||
| 8 | 8186836 | Rail, Side (lh) |
|
- | |||||
| 9 | W10240571 | Limiter (limiter) |
|
- | |||||
| 9 | 8186875 | Limiter (limiter) |
|
$ 80.97 | |||||
| 9 | 8186877 | Limiter (limiter) |
|
$ 87.51 | |||||
| 9 | 8186876 | Limiter (limiter) |
|
$ 155.65 | |||||
| 10 | W10240575 | Deflector, Vent |
|
- | |||||
| 11 | 8186850 | Panel, Rear |
|
- | |||||
| 12 | W10121443 | Trim |
|
- | |||||
| 13 | W10240560 | Spacer |
|
- | |||||
| 14 | 8186878 | Relay |
|
- | |||||
| 15 | W10240554 | Clamp, Therm. |
|
- | |||||
| 16 | W10240556 | Screw, Set |
|
- |
