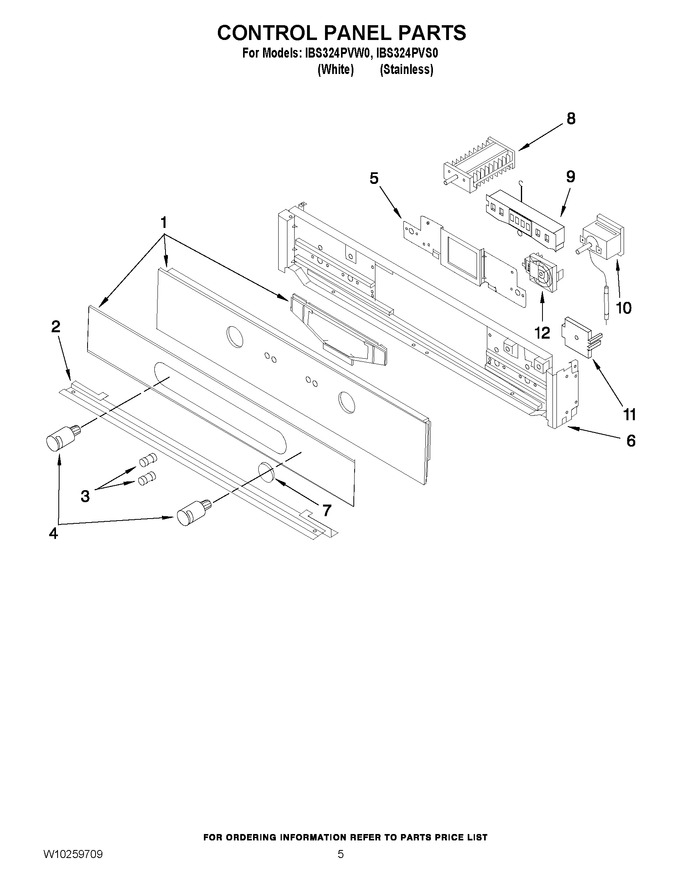

04 - Control Panel Parts
05 - Top Venting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10258992 | Panel, Control (white) |
|
- | |||||
| 1 | W10240568 | Panel, Control (stainless) |
|
- | |||||
| 2 | W10240555 | Trim, Lower |
|
- | |||||
| 3 | W10240567 | Button, Push |
|
- | |||||
| 4 | W10251251 | Knob (lh) (Replaces: W10240558) |
|
$ 149.24 | |||||
| 4 | W10240559 | Knob (rh) |
|
- | |||||
| 5 | N/P | Bracket, Display (not Serviced) |
|
- | |||||
| 6 | N/P | Bracket (not Serviced) |
|
- | |||||
| 7 | 8186858 | Clamp |
|
$ 8.74 | |||||
| 8 | 8186879 | Switch, Oven |
|
$ 153.91 | |||||
| 9 | W10240569 | Control, Oven |
|
$ 208.09 | |||||
| 10 | 8186874 | Thermostat (broil) |
|
$ 166.83 | |||||
| 10 | W10240572 | Thermostat (oven) |
|
$ 180.73 | |||||
| 11 | W10240574 | Regulator |
|
- | |||||
| 12 | W10240573 | Encoder |
|
$ 182.50 |
