SELECT A DIAGRAM

01 - Oven Parts

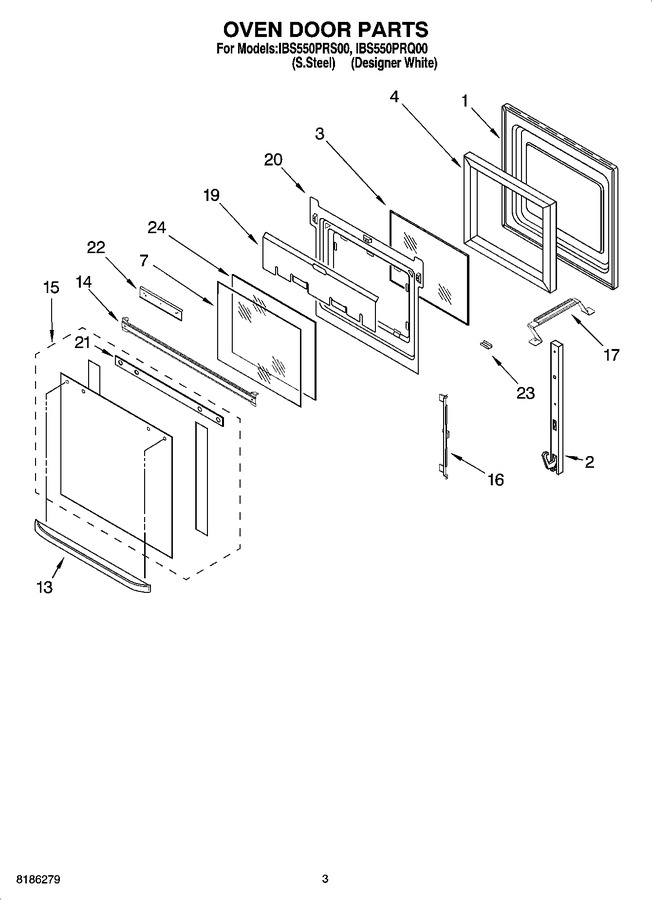

02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Door Liner   (Replaces: 4457127)				$ 317.54
2	WP9760574		Hinge, Door (l.side (orange))   (Replaces: 8300580)			Immediately	$ 60.36
2	WP4449743		Hinge, Door (screw)   (Replaces: 4449743)				$ 6.47
2	WP9760579		Hinge, Door (r.side (orange))   (Replaces: 8300579)			Immediately	$ 64.35
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 182.86
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 162.66
7	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 174.78
13	8303589		Door Handle (s.steel)				$ 50.37
13	8303590		Door Handle (white)		Appelez-nous	-
14	WPW10132940		Screw   (Replaces: 3196184)				$ 8.50
14	8302795		Bracket, Handle		Appelez-nous	-
15	8302797		Assy, Door Glass (white)		Appelez-nous	-
15	8303108		Assy, Door Glass (s.steel)		Appelez-nous	-
16	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 160.71
17	9759230		Bracket (3rdglass)				$ 36.30
19	4457104		Shield, Heat   (Replaces: 4457103)				$ 33.62
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 275.13
20	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
21	8303504		Seal, Door Top		Appelez-nous	-
22	4457114		Shield, Heat-bottom				$ 186.68
23	4451432		Retainer, Clip		Appelez-nous	-
23	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
24	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 174.78

    View Diagram in Separate Window       Print Part List
