SELECT A DIAGRAM

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts

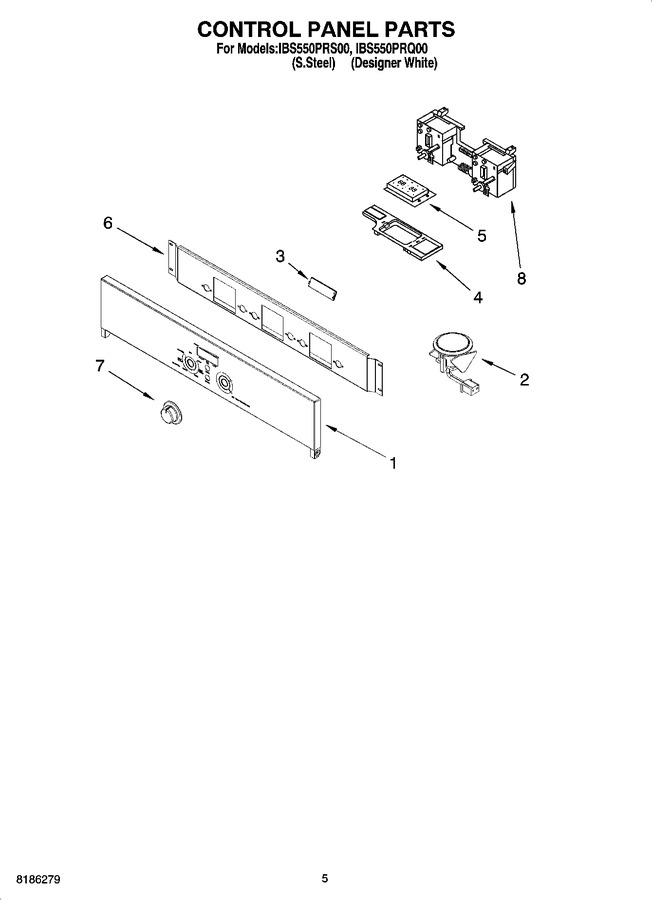

04 - Control Panel Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8302780		Control Panel Assy. (s.steel)		Appelez-nous	-
1	8302777		Control Panel Assy. (white)		Appelez-nous	-
2	8303089		Switch, Enter (black)				$ 113.13
2	8303090		Switch, Enter (white Cancel)		Appelez-nous	-
2	8303091		Switch, Enter (black)				$ 116.52
2	8303092		Switch, Enter (white)				$ 92.87
3	8303096		Cover, Display				$ 38.51
4	4453000		Bracket, Display		Appelez-nous	-
5	WP4452999		Module, Display   (Replaces: 4452999)			Immediately	$ 293.49
6	8302774		Bracket, Ui		Appelez-nous	-
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
7	9758755		Knob (black)				$ 97.48
7	9758756		Knob (white)		Appelez-nous	-
8	8303093		Control, Ui				$ 230.74

    View Diagram in Separate Window       Print Part List
