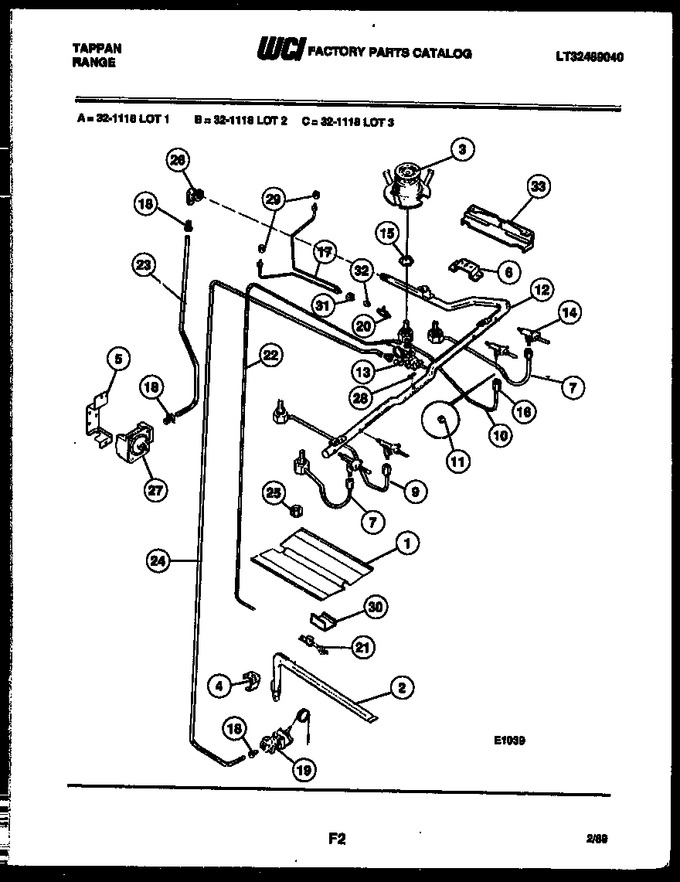

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131327		Baffle, Oven		Appelez-nous	-
2	079T036P03		Burner - Oven		Appelez-nous	-
3	3011567		Burner Top Assy.		Appelez-nous	-
4	3018603		Brkt Burner Mtg.		Appelez-nous	-
5	3131183		Brkt.-regul		Appelez-nous	-
6	072T851F02		Brkt-burner Mtg		Appelez-nous	-
7	3131970		Burner-tube (lf Rf)		Appelez-nous	-
9	079T033H02		Burner, Tube		Appelez-nous	-
10	3131338		Burner Tube Lr		Appelez-nous	-
11	241T074P01		Ferrule (4)		Appelez-nous	-
12	3015390		Manifold Pipe		Appelez-nous	-
13	722T058P02		Thermostat		Appelez-nous	-
14	3017542		Valve Top 2 Pos (4)		Appelez-nous	-
15	479T069P40		Nut, Special (4)		Appelez-nous	-
16	3131148		Nut-comprssn. (4)		Appelez-nous	-
17	750T185P01		Tube Top Plt Dul		Appelez-nous	-
18	3131261		Fitting, Loxit		Appelez-nous	-
19	3131405		Valve-safety		Appelez-nous	-
20	244T039P01		Filter		Appelez-nous	-
21	549T037P01		Pilot		Appelez-nous	-
22	750T056P21		Tube Oven Pilot		Appelez-nous	-
23	750T085H09		Tube Alum 3/8		Appelez-nous	-
24	750T085H13		Tube Alum. 3.8		Appelez-nous	-
25	479T069P03		Nut		Appelez-nous	-
26	215T013P01		Elbow		Appelez-nous	-
27	166T013P01		Control-regular		Appelez-nous	-
28	3018601		Adapter-thermo		Appelez-nous	-
29	124T010P01		Cap-top Pit (2)		Appelez-nous	-
30	3131204		Shld-stnding Pit		Appelez-nous	-
31	479T080P01		Nut Cmprssn 3/16		Appelez-nous	-
32	247T073P01		Ferrule 3/16		Appelez-nous	-
33	136T355W04		Channel-flash Tube		Appelez-nous	-
*18326	3051420		Pop Rivet		Appelez-nous	-
32A	3131737		Washer (non-illustrated)				$ 5.59
32B	3131598		Washer (repair) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
