02 - Backguard
03 - Cooktop Parts
04 - Burner, Manifold And Gas Control
05 - Door Parts
06 - Broiler Drawer Parts
07 - Body Parts
SELECT A DIAGRAM
New Model Search:

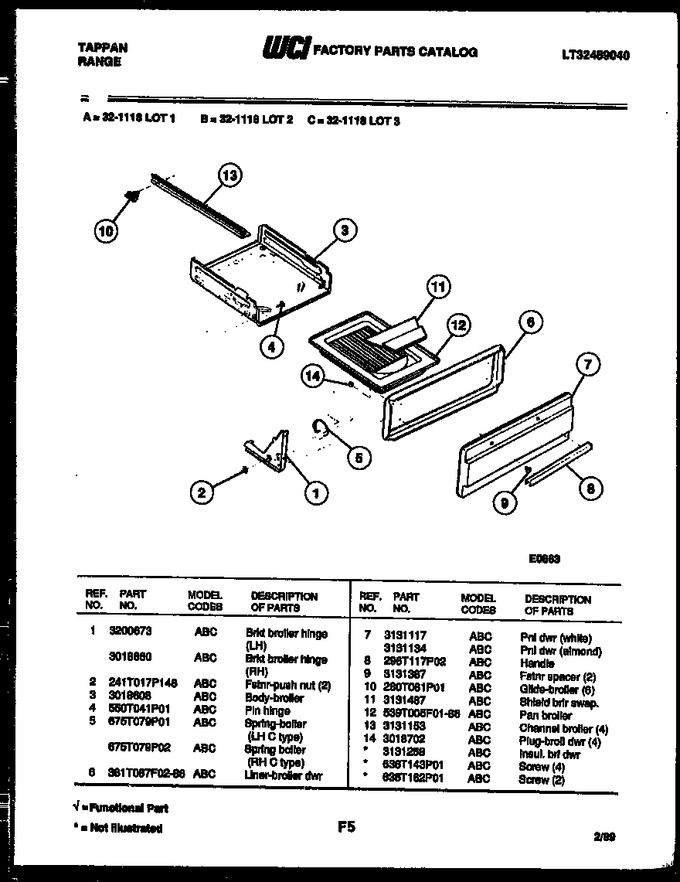

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3200673 | Brkt-broiler Hinge (lh) |
|
- | |||||
| 2 | 241T017P148 | Fstnr-push Nut (2) |
|
- | |||||
| 3 | 3018608 | Body, Broiler |
|
- | |||||
| 4 | 550T041P01 | Pin, Hinge |
|
- | |||||
| 5 | 675T079P01 | Spring-boiler Lh (c Type) |
|
- | |||||
| 6 | 381T087F02-86 | Liner-broiler Dwr |
|
- | |||||
| 7 | 3131134 | Pnl Dwr-almond |
|
- | |||||
| 8 | 296T117P02 | Handle |
|
- | |||||
| 9 | 3131387 | Fstnr, Spacer (2) |
|
- | |||||
| 10 | 280T061P01 | Glide, Broiler (6) |
|
- | |||||
| 11 | 3131487 | Shield Brlr Swap. |
|
- | |||||
| 12 | 539T005F01-86 | Pan Broiler |
|
- | |||||
| 13 | 3131153 | Channel, Broiler (4) |
|
- | |||||
| 14 | 3018702 | Plug-broil Dwr (4) |
|
- | |||||
| *18329 | 636T143P01 | Screw |
|
- | |||||
| *18329 | 3131258 | Insul. Brl Dwr |
|
- | |||||
| *18329 | 636T162P01 | Screw (2) |
|
- | |||||
| 1A | 3018860 | Brkt-broiler Hinge (rh) |
|
- | |||||
| 5A | 675T079P02 | Spring Boiler Rh (c Type) |
|
- |
