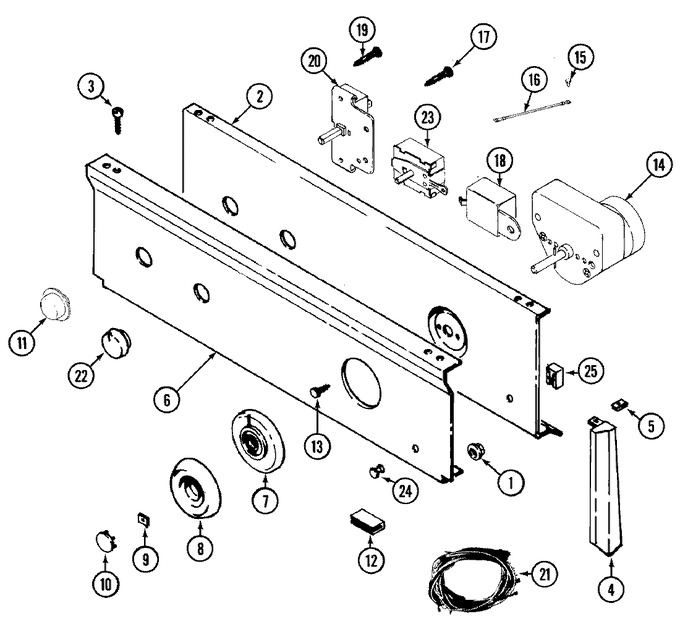

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	214872	Palnut, End Cap	A0	Appelez-nous	-
2	33001237	Plate, Support	A0	Appelez-nous	-
3	210932	Screw, No.8 X 9/16 Ctsk	A0	Appelez-nous	-
4	22001293	End Cap, Ctrl. Pnl. (rt-alm)	A0	Appelez-nous	-
4	22001292	End Cap, Ctrl. Pnl. (lt-alm)	A0	Appelez-nous	-
4	22001567	Cap, End (lt-alm)	13	Appelez-nous	-
4	22001566	Cap, End (rt-alm)	13	Appelez-nous	-
5	214894	Fastener, End Cap	A0	Appelez-nous	-
6	33001472	Panel, Control (alm)	A0	Appelez-nous	-
7	33001372	Skirt, Timer Dial (alm)	A0	Appelez-nous	-
8	33001282	Knob Assy. (alm)	A0	Appelez-nous	-
9	W10155650	Nut (Replaces: 312273)	A0			$ 12.03
10	216424	Cap, Knob (alm)	A0	Appelez-nous	-
11	33001371	Button, Push-to-start (alm)	A0	Appelez-nous	-
12	214897	Pad, Control Panel	A0	Appelez-nous	-
13	WP488234	Screw, Switches (Replaces: 315317)	A0			$ 6.07
14	33001037	Timer (230v-50hz) Rpr	A0			$ 168.55
15	WP489128	Screw, Ground Wire To Base--na (Replaces: 210186)	A0			$ 9.79
16	204807	Grnd.wire,supp.plte To Top Cvr	A0	Appelez-nous	-
17	WP488234	Screw, Switches (Replaces: 315317)	A0			$ 6.07
18	WP694419	Buzzer - Non-adjustable (Replaces: 305205)	A0			$ 114.90
19	WP488234	Screw, Switches (Replaces: 315317)	A0			$ 6.07
20	33001232	Switch, Push To Start	A0	Appelez-nous	-
21	33001341	Wire Harness, Main	A0	Appelez-nous	-
21	33001571	Wire Harness, Main	16	Appelez-nous	-
22	22001269	Knob Assy. (alm)	A0	Appelez-nous	-
23	33001228	Switch, Temp. (3 Positions)	A0	Appelez-nous	-
24	WP7730P011-60	Lens, Indicator Light (Replaces: 22001215)	A0			$ 5.16
25	33001223	Light, Indicator	A0	Appelez-nous	-
26	16000327	Guide, Quick Ref. - Maytag	A0	Appelez-nous	-
26	33001256	Manual, Use & Care	A0	Appelez-nous	-
