SELECT A DIAGRAM

01 - Cabinet-front (lde7304agm & Ldg7304agm)


02 - Cabinet-rear (lde7304agm & Ldg7304agm)


03 - Control Panel (lde7304agm & Ldg7304agm)


04 - Door (lde7304agm & Ldg7304agm)


05 - Heater


06 - Motor Drive (lde7304agm & Ldg7304agm)


07 - Tumbler (lde7804agm & Ldg7804agm)

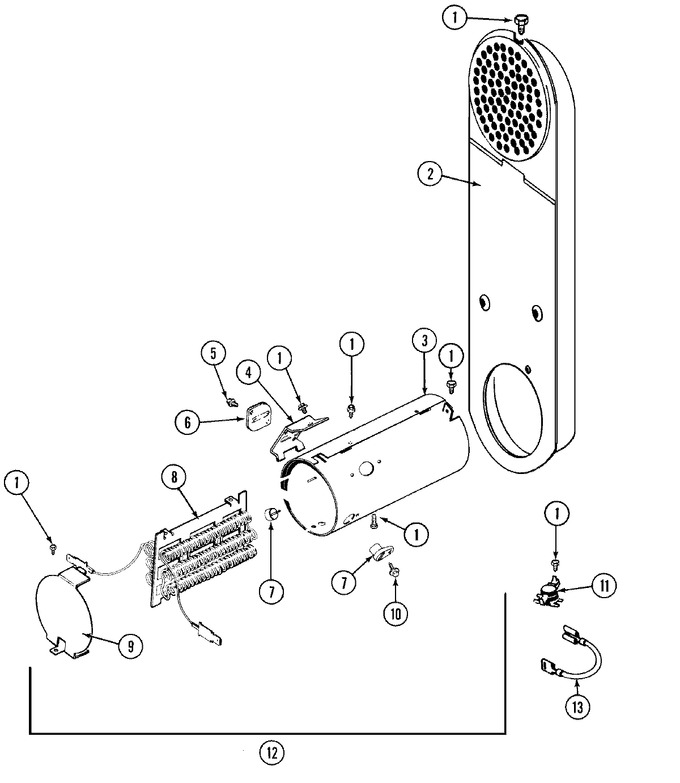

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw   (Replaces: 211294)	A0		Immediately	$ 7.04
2	308503		Inlet Duct Assy.	A0	Appelez-nous	-
3	314995		Heater Enclosure	A0	Appelez-nous	-
4	315346		Bracket, Thermal Fuse	A0	Appelez-nous	-
5	WP90767		Screw   (Replaces: 314848)	A0		Immediately	$ 7.04
6	WP307473		Fuse, Thermal   (Replaces: 307473)	A0		Immediately	$ 55.22
7	314998		Insulator, Terminal	A0			$ 18.77
8	WPY308615		Heater Sub-assembly   (Replaces: Y308615)	A0			$ 312.87
9	314999		Shield, Radiant	A0	Appelez-nous	-
10	314554		Screw	A0	Appelez-nous	-
11	308217		Thermostat,hi-limit(canada)	A0	Appelez-nous	-
12	307180		Heater Assembly (240-50)	A0	Appelez-nous	-
13	WPY307173		Wire, Jumper   (Replaces: Y307173)	A0			$ 6.47

    View Diagram in Separate Window       Print Part List
