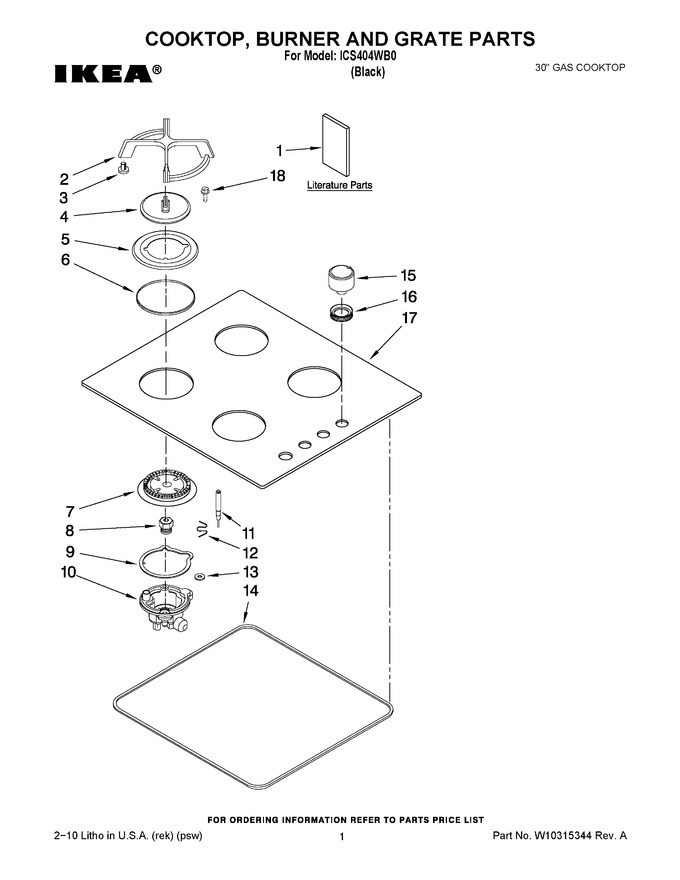

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10321462		Lp Conv.instr.		Appelez-nous	-
1	8186961		Installation Instructions		Appelez-nous	-
1	W10321461		Use & Care Guide		Appelez-nous	-
2	8186885		Grate		Appelez-nous	-
3	8186886		Bumper, Grate		Appelez-nous	-
4	8186896		Cap, Burner (lf)		Appelez-nous	-
4	8186894		Cap, Burner (rf)		Appelez-nous	-
4	8186895		Cap, Burner (lr,rr)		Appelez-nous	-
5	8186888		Ring (lr,rr)		Appelez-nous	-
5	8186887		Ring (rf)		Appelez-nous	-
5	8186889		Ring (lf)		Appelez-nous	-
6	8186902		Gasket		Appelez-nous	-
7	8186810		Head, Burner (lf)		Appelez-nous	-
7	8186808		Head, Burner (rf)		Appelez-nous	-
7	8186809		Head, Burner (lr,rr)				$ 38.55
8	8186814		Orifice (natural)				$ 48.86
8	8186815		Orifice (lp)				$ 62.33
9	W10321453		Gasket (rf)		Appelez-nous	-
9	W10321458		Gasket (lf)		Appelez-nous	-
9	W10321457		Gasket (lr,rr)		Appelez-nous	-
10	8186805		Holder, Orifice (rf)		Appelez-nous	-
10	8186807		Holder, Orifice (lf)		Appelez-nous	-
10	8186806		Holder, Orifice (lr,rr)				$ 35.33
11	8186819		Plug, Spark				$ 100.80
12	8186820		Spring		Appelez-nous	-
13	8186903		Gasket, Orif & Trim		Appelez-nous	-
14	WPW10237005		Seal, Foam   (Replaces: W10237005)			Immediately	$ 140.19
15	W10321452		Knob				$ 30.72
16	8186833		Gasket, Knob		Appelez-nous	-
17	W10321450		Cooktop, Glass		Appelez-nous	-
18	W10237003		Screw		Appelez-nous	-
