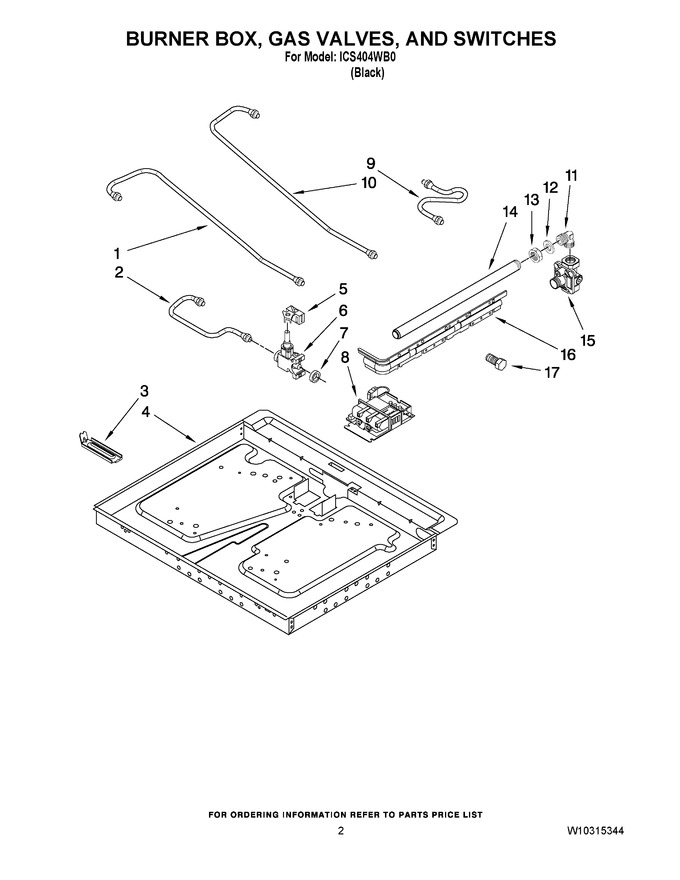

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8186900		Tubing, Lf		Appelez-nous	-
2	8186898		Tubing, Rf		Appelez-nous	-
3	8186830		Bracket, Mtg		Appelez-nous	-
4	N/P		Box, Burner (not Serviced)		Appelez-nous	-
5	8186821		Ignition,elec.				$ 198.33
6	8186816		Valve, Gas (lf)		Appelez-nous	-
6	8186818		Valve, Gas (rf)				$ 169.94
6	8186817		Valve, Gas (lr,rr)				$ 194.63
7	8186828		Ring, Gasket				$ 44.05
8	8186822		Block, Terminal		Appelez-nous	-
9	8186897		Tubing, Rr		Appelez-nous	-
10	8186899		Tubing, Lr		Appelez-nous	-
11	8186827		Elbow Pipe, Manfld		Appelez-nous	-
12	8186829		Ring, Gasket		Appelez-nous	-
13	N/P		Nut (not Serviced)		Appelez-nous	-
14	N/P		Pipe, Manifold (not Serviced)		Appelez-nous	-
15	8186962		Regulator, Pressure				$ 199.00
16	N/P		Bracket, Manifold (not Serviced)		Appelez-nous	-
17	8186832		Bolt, Gas Valve		Appelez-nous	-
