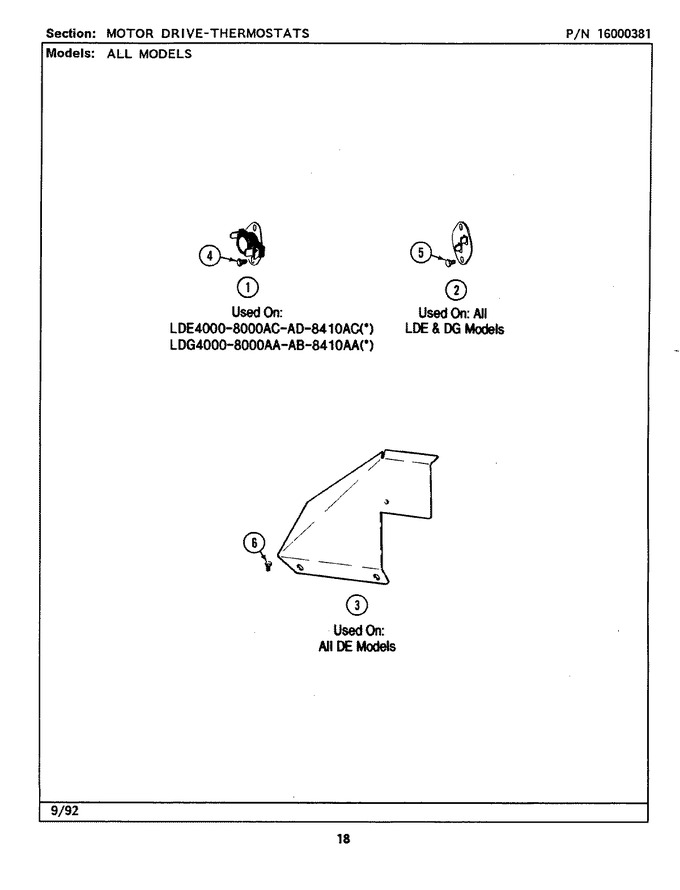

07 - Motor Drive-thermostats
08 - Tumbler
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPY304475 | Cycling Thermostat 140 Deg. (Replaces: Y304475) | A0 |
|
Immediately | $ 71.61 | |||
| 2 | WP306604 | Cut-off, Thermal (Replaces: 306604) | A0 |
|
Immediately | $ 37.77 | |||
| 3 | 315122 | Cover, Thermostat | A0 |
|
- | ||||
| 4 | WP90767 | Screw (Replaces: 211294) | A0 |
|
Immediately | $ 7.04 | |||
| 5 | WP90767 | Screw (Replaces: 314848) | A0 |
|
Immediately | $ 7.04 | |||
| 6 | Y310632 | Screw | A0 |
|
- |
