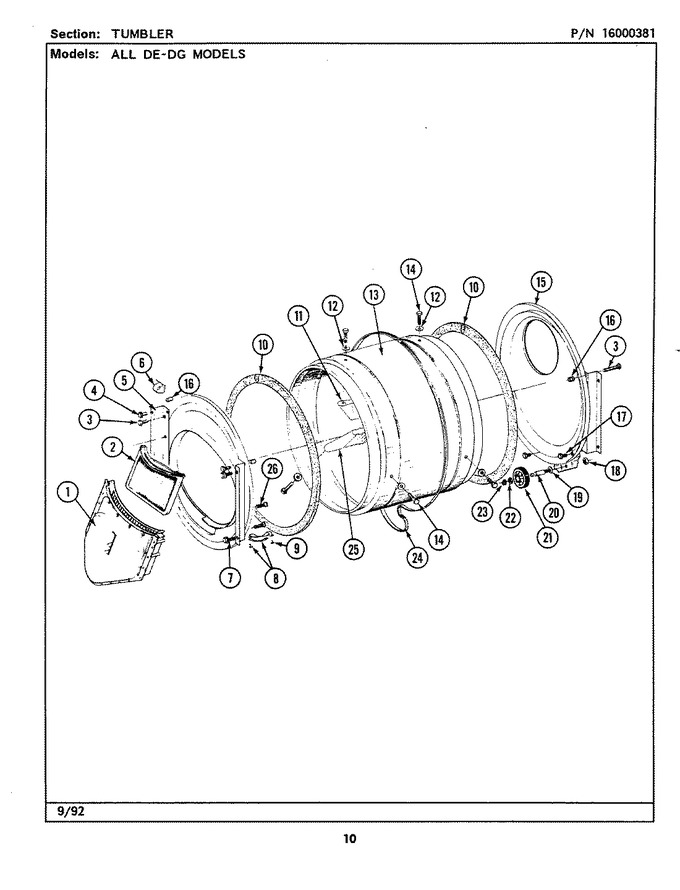

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y307112		Duct, Outlet Assy.	A0	Appelez-nous	-
2	Y307107		Lint Filter	A0			$ 14.45
3	313764		Screw	A0	Appelez-nous	-
4	Y313561		Screw----na	A0			$ 5.27
5	307109		Front, Tumbler (w/seal)	A0	Appelez-nous	-
6	Y310376		Clip, Wire Harness	A0	Appelez-nous	-
7	Y310632		Screw	A0	Appelez-nous	-
8	306508		Tumbler Bearing Kit	A0		Immediately	$ 20.77
9	WP210720		Rivet   (Replaces: 210720)	A0			$ 12.14
10	WP314820		Seal, Tumbler   (Replaces: 314820)	A0		Immediately	$ 30.66
11	314803		Baffle (short)	A0	Appelez-nous	-
12	314158		Washer	A0			$ 5.48
13	306663		Tumbler W/baffles	A0	Appelez-nous	-
13	314802		Tumbler W/out Baffles	A0	Appelez-nous	-
14	Y310759		Screw	A0			$ 5.75
15	Y307114		Back, Tumbler (w/seal)	A0	Appelez-nous	-
15	Y308544		Back, Tumbler (w/seal)	A5	Appelez-nous	-
16	313915		Cover, Thread	A0	Appelez-nous	-
17	WP90767		Screw   (Replaces: 211294)	A0		Immediately	$ 7.04
18	WP33001443		Nut, Roller Shaft   (Replaces: 312538)	A0			$ 7.15
19	WP312535		Washer, Spring (roller Shaft)   (Replaces: Y313347)	A0		Immediately	$ 10.25
20	Y312948		Shaft, Tumbler Roller	A0	Appelez-nous	-
21	12001541		Bearing & Roller Assembly   (Replaces: Y303373)	A0		Immediately	$ 27.92
22	WP312535		Washer, Roller Shaft   (Replaces: 312535)	A0		Immediately	$ 10.25
23	WP9703438		Ring, Retaining   (Replaces: 410233)	A0		Immediately	$ 3.81
24	WPY312959		Belt, Tumbler & Motor   (Replaces: Y312959)	A0		Immediately	$ 30.66
25	33001004		Baffle (tall)   (Replaces: 314804)	A0			$ 133.20
26	WP3400065		Screw, Inlet Duct   (Replaces: Y314110)	A0		Immediately	$ 6.97
