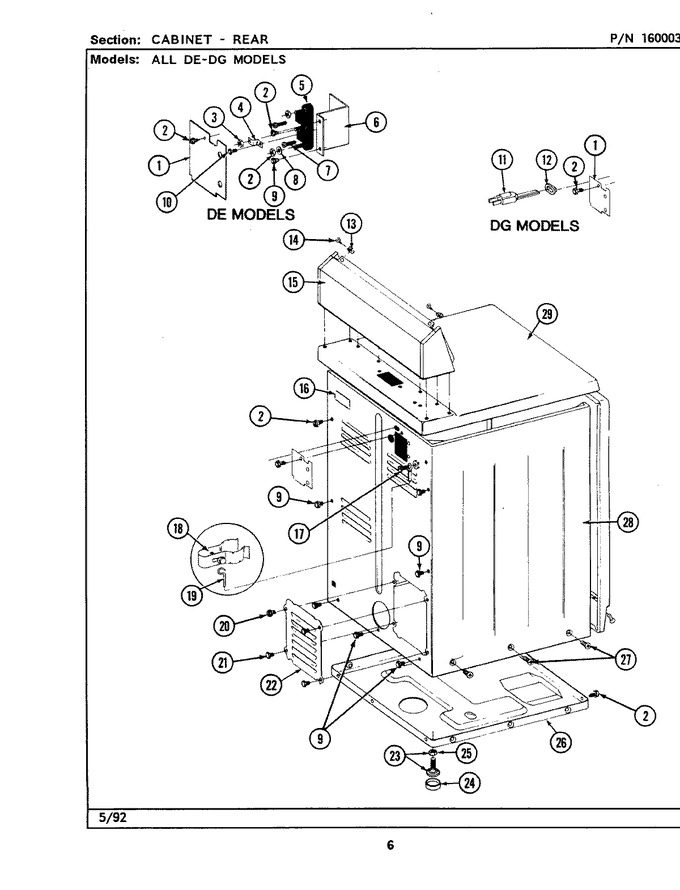

03 - Cabinet-rear (lde7500ace,ade) & (ldg)


04 - Control Panel (lde7500ace,ade) & (ldg)


05 - Control Panel (lde7500acm,adm) & (ldg)


06 - Door (lde7500ace,ade) & (ldg)


07 - Door (lde7500acm,adm) & (ldg)


08 - Heater (lde7500ace, Ade)


09 - Motor Drive (lde7500ace,ade) & (ldg)


10 - Motor Drive (lde7500acl,acw,adl,adw)


11 - Motor Drive (lde7500acm,adm) & (ldg)


12 - Motor Drive (ldg7500aal,aaw,abl,abw)


13 - Thermostats (lde7500ace,ade) & (ldg)


14 - Thermostats (lde7500acm,adm) & (ldg)


15 - Tumbler (lde7500ace,ade) & (ldg)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y312905		Cover, Terminal	A3	Appelez-nous	-
2	Y313561		Screw----na	A3			$ 5.27
3	WP112432		Nut, Terminal Block   (Replaces: 311484)	A3			$ 7.16
4	Y312184		Strap, Ground	A3	Appelez-nous	-
5	400008		Block, Terminal	A3			$ 29.20
6	Y312904		Bracket, Terminal Block	A3	Appelez-nous	-
7	W11164114		Screw, No.10-24 X 3/4 Inch   (Replaces: Y312209)	A3			$ 3.76
8	Y311270		Washer, Terminal Block	A3			$ 8.75
9	Y310632		Screw	A3	Appelez-nous	-
10	WP489483		Screw, No.10-32 X 1/2 Inch   (Replaces: Y311423)	A3			$ 9.78
11	305168		Cord, Power (canada)	A3	Appelez-nous	-
13	215075		Fastener,cntrl Pnl To Console	A3			$ 4.83
14	210932		Screw, No.8 X 9/16 Ctsk	A3	Appelez-nous	-
15	Y305193		Console (wht)	A3	Appelez-nous	-
16	214519		Label, Electrical Instruction	A3	Appelez-nous	-
17	W10850756		Screw & Washer Assy.   (Replaces: 303846)	A3			$ 6.98
20	WP90767		Screw   (Replaces: Y313559)	A3		Immediately	$ 7.04
21	WP90767		Screw   (Replaces: 211294)	A3		Immediately	$ 7.04
22	Y312951		Cover, Access	A3	Appelez-nous	-
23	WP233550		Adjustable Leg & Nut   (Replaces: Y305086)	A3			$ 7.16
24	Y314137		Foot, Rubber	A3			$ 14.08
25	WP62739		Nut   (Replaces: Y052740)	A3			$ 6.85
26	Y303361		Base Assy.	A3	Appelez-nous	-
27	213077		Cap For Timer Knob	A3	Appelez-nous	-
28	307124		Cabinet (wht)	A3	Appelez-nous	-
29	307104		Top Cover Assy	A3	Appelez-nous	-
