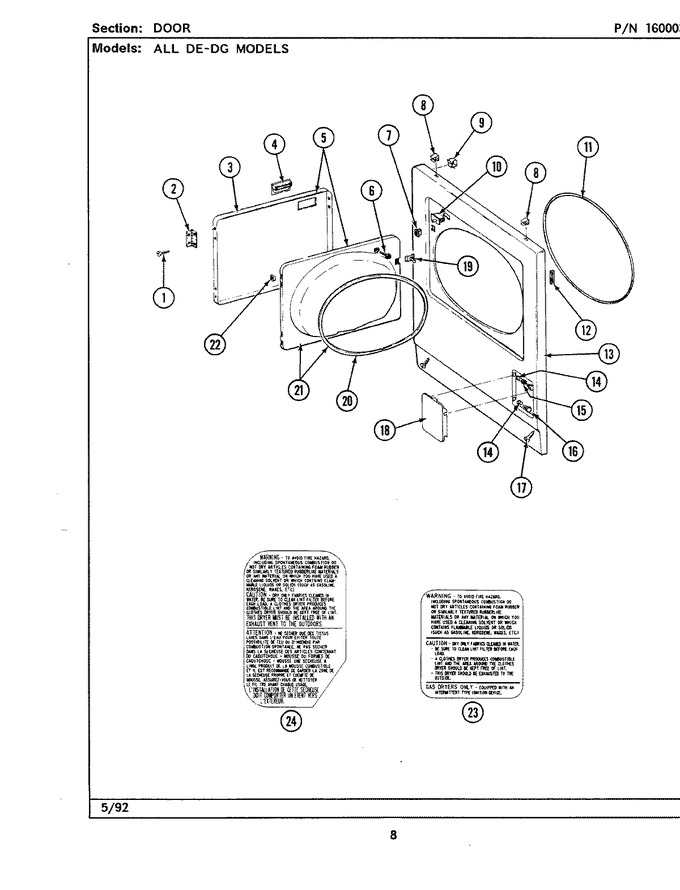

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y314062		Screw	A3			$ 12.03
2	307099		Hinge	A3	Appelez-nous	-
3	314966		Panel, Outer (wht)	A3	Appelez-nous	-
4	314946		Handle White	A3	Appelez-nous	-
5	Y307111		Door Assy. Complete (wht)	A3	Appelez-nous	-
6	W11233072		Screw - Inlet Duct   (Replaces: 312960)	A3		Immediately	$ 12.62
7	306436		Door Latch Kit	A3		Immediately	$ 10.17
8	WP22001650		Fastener, Panel   (Replaces: 212982)	A3		Immediately	$ 7.34
9	Y310376		Clip, Wire Harness	A3	Appelez-nous	-
10	W10169313		Switch, Door   (Replaces: Y305753)	A3		Immediately	$ 29.18
11	314937		Seal, Front Panel	A3			$ 5.00
12	Y313907		Twin Fastener	A3	Appelez-nous	-
13	308000		Panel, Front (wht)	A3	Appelez-nous	-
19	WP33001305		Door Strike   (Replaces: 314936)	A3			$ 2.31
20	314935		Door Seal	A3	Appelez-nous	-
21	307098		Door, Inner (w/seal)	A3	Appelez-nous	-
22	Y313910		Clip, Door Liner To Outer Pnl	A3	Appelez-nous	-
23	314941		Label, Instruction	A3	Appelez-nous	-
24	314942		Instruction Label	A3	Appelez-nous	-
