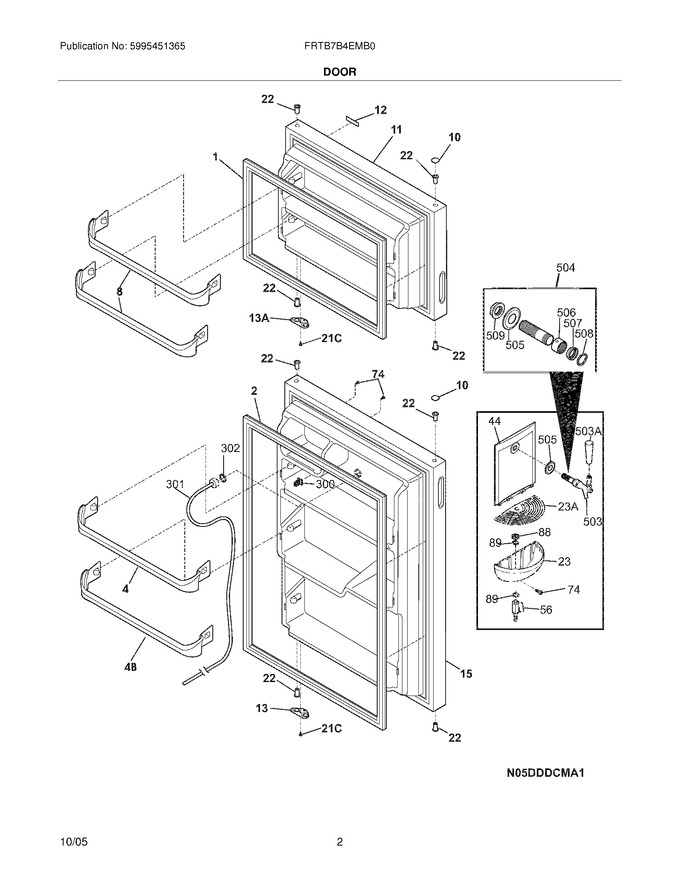

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241872510		Gasket,refr Door Seal ,black ,magnetic   (Replaces: 240542122)				$ 198.03
4	240535101		Rack-door			Immediately	$ 28.57
8	240535001		Rack-door			Immediately	$ 48.20
10	240381303		Plug-button,black ,hinge Brg Hole				$ 69.77
11	240433503		Door-frzr, Complete		Appelez-nous	-
12	241808601		Label-nameplate,black   (Replaces: 240415204)				$ 12.69
13	240312422		Door Stop,black ,refr   (Replaces: 240312405)				$ 15.17
15	240428803		Door-refr, Complete		Appelez-nous	-
22	5304507147		Bearing-hinge,black   (Replaces: 240527102)			Immediately	$ 7.59
23	241662501		Sump-dispenser,black		Appelez-nous	-
44	241662601		Cover-module,black		Appelez-nous	-
45	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 14.18
56	5304451131		Drain Sump Kit		Appelez-nous	-
74	240383403		Screw,truss Hd Quad ,no.10-16 X .500 ,black		Appelez-nous	-
88	241672601		Nut		Appelez-nous	-
89	241672501		Washer,neoprene		Appelez-nous	-
300	218515401		Clip				$ 17.72
301	5304443662		Hose,delivery ,3/16`` Id X 5`		Appelez-nous	-
302	5304443664		Washer,sealing ,neoprene ,(2)				$ 10.71
503	5304443658		Faucet,standard				$ 319.78
504	5304451133		Shank Assembly,faucet		Appelez-nous	-
505	5304443667		Flange,sealing ,plastic ,black		Appelez-nous	-
506	5304443668		Nut,faucet Coupling ,chrome		Appelez-nous	-
507	5304443669		Sleeve		Appelez-nous	-
508	5304443670		Snap Ring		Appelez-nous	-
509	5304443672		Lock Nut		Appelez-nous	-
13A	240312415		Door Stop,black ,frzr   (Replaces: 240312406)				$ 21.27
21A	240521303		Screw,no.10-16 X 1/2   (Replaces: 240521301)			Immediately	$ 30.20
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
23A	241662701		Drip Tray,black		Appelez-nous	-
4B	240535201		Rack-door			Immediately	$ 30.34
F1	241872507		Gasket-frzr Door,black ,magnetic   (Replaces: 240542119)				$ 165.85
F503	5304443659		Knob,faucet ,black		Appelez-nous	-
NI	241669401		Ferrule-outer		Appelez-nous	-
NI	5304443671		Cleaning Kit,deluxe				$ 284.70
NI	5304451963		Drain Sump Hose Kit		Appelez-nous	-
NI	5304451132		Regulatory Washer Kit		Appelez-nous	-
NI	241669301		Ferrule-inner		Appelez-nous	-
