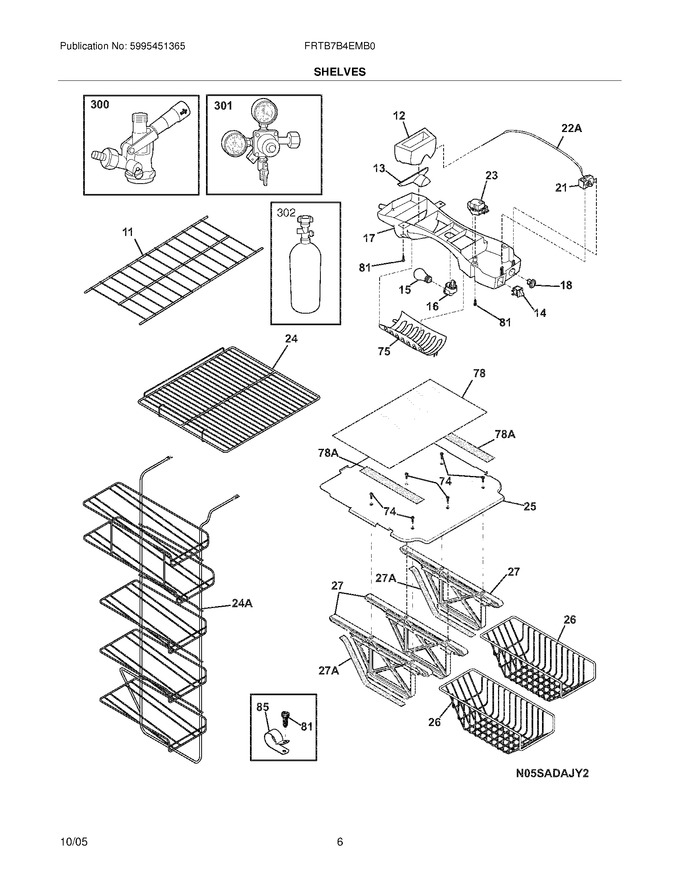

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358004		Shelf,freezer			Immediately	$ 47.93
12	241542001		Diffuser,air ,top			Immediately	$ 74.42
13	240362601		Diffuser-air,bottom			Immediately	$ 41.81
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
16	241559801		Socket-light				$ 72.68
17	240368002		Control Box   (Replaces: 240368001)				$ 134.23
18	240360801		Knob-temp Control				$ 43.95
24	241667701		Shelf-fixed,white		Appelez-nous	-
25	241665901		Cover,keg Support		Appelez-nous	-
26	241667601		Basket-sliding,wire		Appelez-nous	-
27	241659001		Support,keg Plate		Appelez-nous	-
74	215503201		Screw,cr Pan Hd ,10-16 X 0.500		Appelez-nous	-
75	240515601		Shield-light				$ 53.73
78	241672701		Plate-skid		Appelez-nous	-
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 14.18
85	218644502		Clamp-strain Relief		Appelez-nous	-
300	5304443657		Coulper,keg		Appelez-nous	-
301	5304443660		Gauge,pressure ,double ,co2 Primary		Appelez-nous	-
302	5304443661		Tank,co2 ,aluminum		Appelez-nous	-
22A	240468202		Tube,sensor Sleeve ,31 Inch ,plastic ,white   (Replaces: 240468201)				$ 9.10
24A	241662401		Shelf,can Tower		Appelez-nous	-
27A	241661002		Tape-double Faced,23``		Appelez-nous	-
78A	241661003		Tape-double Faced,21``		Appelez-nous	-
F14	241554901		Switch-light/lamp				$ 70.88
F21	241537103		Control-temperature   (Replaces: 5304421256)			Immediately	$ 72.31
F23	215846602		Timer-defrost   (Replaces: 241621501)			Immediately	$ 28.20
NI	240568606		Seal   (Replaces: 240568607)				$ 12.76
NI	5304455649		Screw-timer Mtg,pan Hd ,6-20 X 0.438 ,(2)   (Replaces: 5303001259)				$ 17.01
NI	240388701		Wiring Harness,control Box			Immediately	$ 80.09
NI	240379015		Service Data Sheet		Appelez-nous	-
