SELECT A DIAGRAM

01 - Top And Cabinet Parts

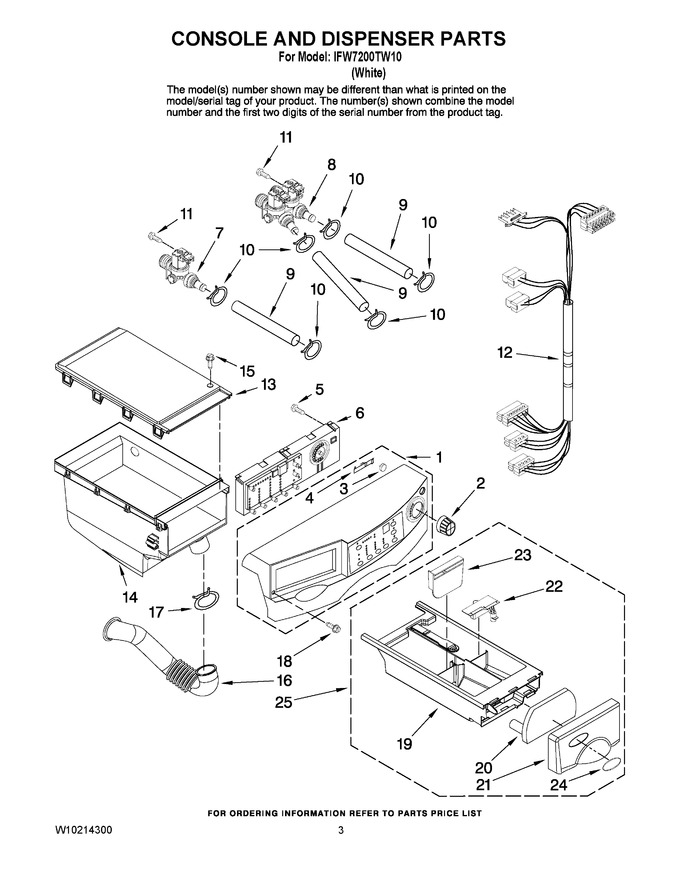

02 - Console And Dispenser Parts


03 - Tub And Basket Parts


04 - Door And Latch Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10175951		Panel, Console		Appelez-nous	-
2	W10175949		Knob, Control		Appelez-nous	-
3	W10175952		Button, Power				$ 34.13
4	34001419		Lever, Power		Appelez-nous	-
5	34001231		Screw (5)				$ 4.83
6	34001499		User Interface		Appelez-nous	-
7	WP34001131		Valve, Inlet (hot Water)   (Replaces: 34001131)			Immediately	$ 161.34
8	WP34001151		Valve, Inlet (cold Water)   (Replaces: 34001151)			Immediately	$ 150.44
9	34001109		Hose, Valve To Dispenser		Appelez-nous	-
10	WP596669		Clamp, Hose   (Replaces: 34001208)			Immediately	$ 7.56
11	34001250		Screw (4)		Appelez-nous	-
12	34001444		Harness, Wiring				$ 222.20
13	WP34001284		Plate, Distribution   (Replaces: 34001423)				$ 100.19
14	WP34001245		Dispenser Body   (Replaces: 34001245)				$ 120.07
15	WP98008545		Screw   (Replaces: 34001232)				$ 15.94
16	34001434		Hose, Dispenser To Tub				$ 89.71
17	34001305		Clamp, Hose		Appelez-nous	-
18	6002-001006		Screw				$ 0.85
19	34001282		Drawer, Detergent		Appelez-nous	-
20	34001422		Bracket, Handle				$ 18.96
21	W10175953		Handle, Drawer		Appelez-nous	-
22	34001401		Cap, Rinse				$ 32.15
23	34001239		Separator		Appelez-nous	-
24	W10267350		Badge		Appelez-nous	-
25	W10267648		Drawer, Dispenser (complete)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
