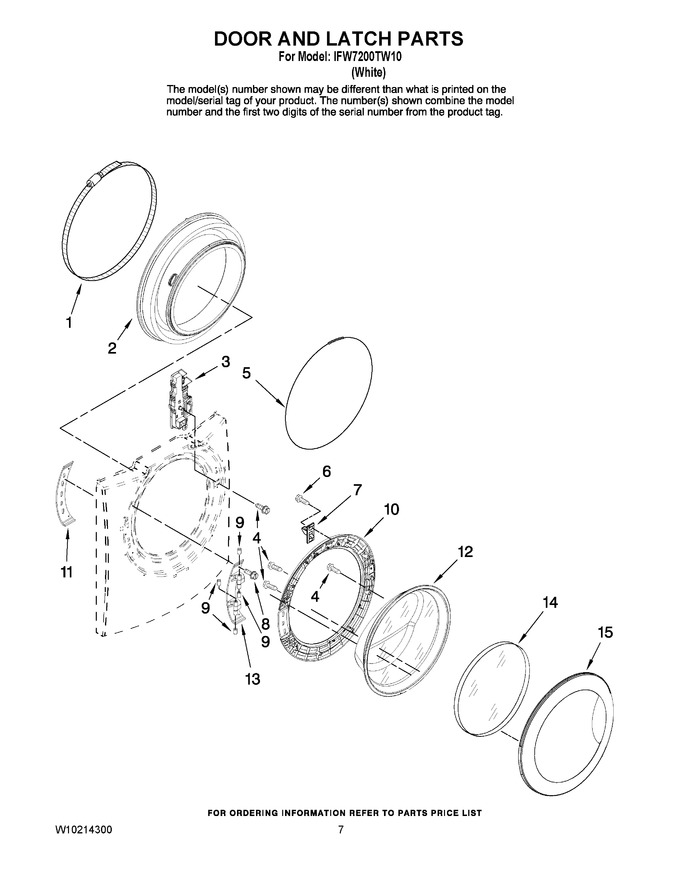

01 - Top And Cabinet Parts
02 - Console And Dispenser Parts
03 - Tub And Basket Parts
04 - Door And Latch Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 34001306 | Clamp, Bellow To Tub |
|
$ 30.78 | |||||
| 2 | WP34001432 | Bellow (Replaces: 34001432) |
|
Immediately | $ 265.28 | ||||
| 3 | WP8182634 | Lock, Door (Replaces: 34001265) |
|
Immediately | $ 97.07 | ||||
| 4 | 34001251 | Screw |
|
- | |||||
| 5 | 34001266 | Clamp, Bellow To Front Panel |
|
$ 20.71 | |||||
| 6 | 34001259 | Screw |
|
$ 6.09 | |||||
| 7 | WP34001260 | Hook, Door (Replaces: 34001260) |
|
Immediately | $ 61.64 | ||||
| 8 | 34001286 | Screw (2) |
|
- | |||||
| 9 | WP34001192 | Bushing, Hinge Guide (4) (Replaces: 34001192) |
|
Immediately | $ 6.47 | ||||
| 10 | 34001426 | Frame, Door Back Support |
|
$ 80.16 | |||||
| 11 | 34001428 | Bracket, Hinge |
|
$ 37.49 | |||||
| 12 | 34001254 | Glass, Door |
|
- | |||||
| 13 | W10175955 | Hinge, Door |
|
- | |||||
| 14 | 34001425 | Screen, Door |
|
$ 141.65 | |||||
| 15 | 34001424 | Frame, Door Front |
|
$ 161.74 |
