SELECT A DIAGRAM

01 - Cover


03 - Door

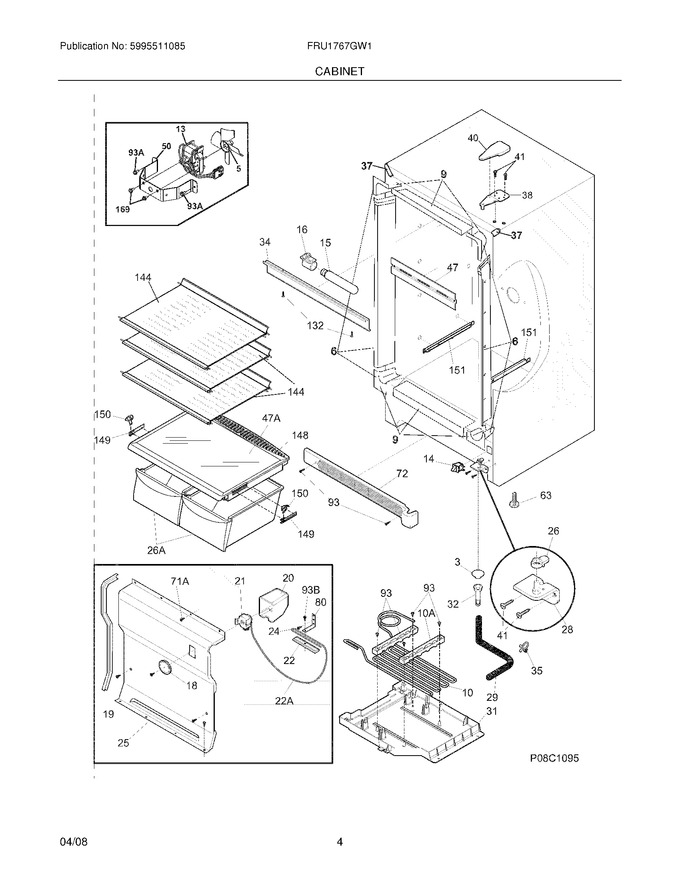

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	297200600		Breaker Kit W/corners,no Lock Slot				$ 52.36
9	297200100		Breaker Kit W/corners,32`` ,top And Bottom				$ 59.28
14	216822900		Switch,light/lamp ,ramp   (Replaces: 216998000)			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
18	216707200		Knob,temp Control				$ 44.10
19	216204900		Gasket, Evap Cover				$ 51.45
20	216230300		Cover, Temp Control				$ 49.88
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5304460604		Screw,type A ,10-24 X 3/8		Appelez-nous	-
25	297098800		Cover-evaporator				$ 94.04
26	216503300		Ramp,door Closer				$ 8.82
28	297164500		Hinge-bottom,stepped Pin				$ 37.76
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
31	297165800		Pan-drain				$ 89.15
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216816200		Shield-light				$ 70.72
35	216273000		Clip, Drain Hose				$ 22.42
37	5303918606		Trim-cabinet Corner,white ,(2)   (Replaces: 241611301)				$ 7.09
38	297283803		Hinge-upper   (Replaces: 297164300)			Immediately	$ 19.52
40	297164400		Cover-hinge				$ 12.65
41	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
47	216661601		Baffle-plate				$ 51.76
50	216394050		Bracket,fan Motor Mount				$ 22.75
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	297036907		Grille/kickplate,32`` ,white   (Replaces: 297036900)				$ 39.29
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
132	5304460601		Screw,6-20ab X 3/8		Appelez-nous	-
144	297178100		Shelf-assy,fixed,glass ,(3) ,complete		Appelez-nous	-
148	216995501		Cover-crisper Pan		Appelez-nous	-
149	5304492617		Damper,humidity Cont.   (Replaces: 240361301)			Immediately	$ 8.69
150	5304492617		Knob,humidity Cont.   (Replaces: 240361202)			Immediately	$ 8.69
151	216988200		Support-crspr Cover,rh				$ 68.04
169	216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)				$ 12.76
10A	297177400		Bracket,(2) ,drain Pan		Appelez-nous	-
151A	216988201		Support-crspr Cover,lh				$ 67.33
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
26A	216959900		Pan-crisper,(2)				$ 169.68
47A	240350608		Insert-pan Cover,glass   (Replaces: 240350650)			Immediately	$ 45.50
71A	297146800		Screw,8-18ab X 0.470 ,evap Panel		Appelez-nous	-
93A	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping				$ 13.01
93B	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
F10	297175600		Heater-drain Pan		Appelez-nous	-
F13	297309000		Motor,fan ,115 V   (Replaces: 216934100)			Immediately	$ 55.32
F21	5304497345		Control-temperature   (Replaces: 216807800)			Immediately	$ 110.14
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	216697905		Energy Guide		Appelez-nous	-
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16

    View Diagram in Separate Window       Print Part List
